Product Details
The Brass Globe Valve is a threaded manual regulating and shutoff valve for water, oil, and general pipeline service. The brass body, female threaded ends, and red handwheel support reliable flow control in compact plumbing and industrial installations.

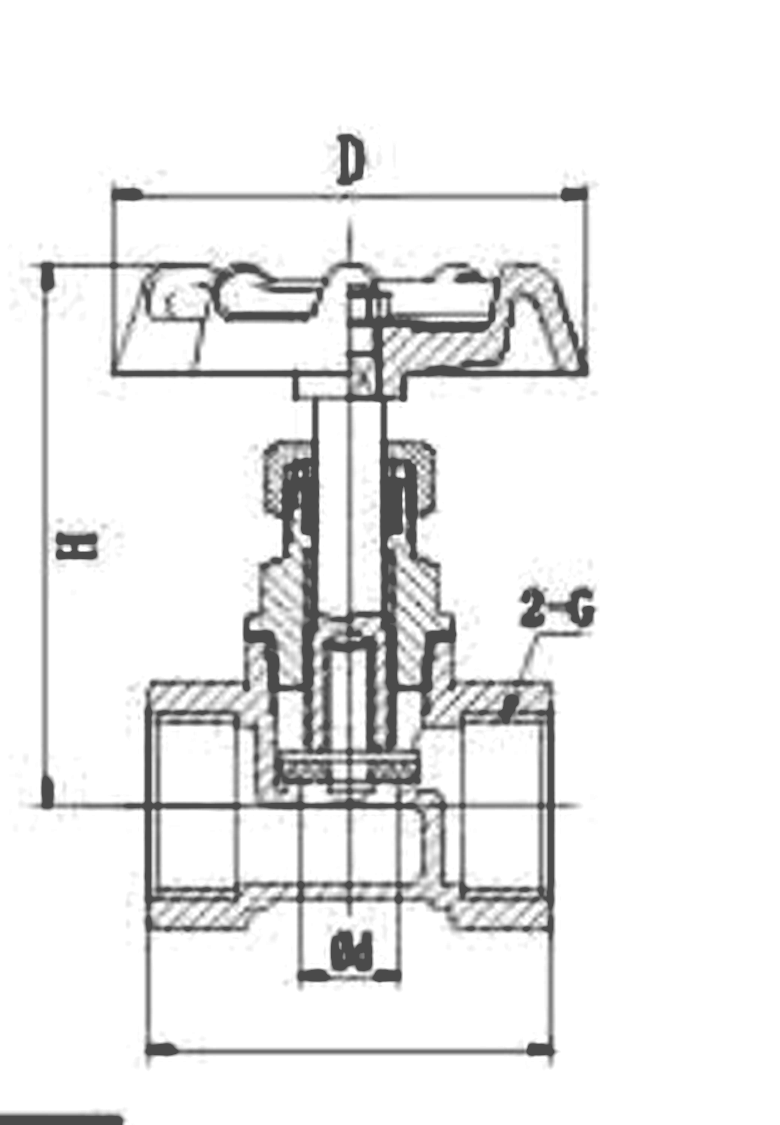

Main Dimensions
| DN | Size | L | d | H | D |
|---|---|---|---|---|---|
| 15 | 1/2" | 46 | 11 | 62 | 53 |
| 20 | 3/4" | 53 | 15 | 67 | 58 |
| 25 | 1" | 63 | 19 | 82 | 71 |
| 32 | 1-1/4" | 70 | 24 | 93 | 78 |
| 40 | 1-1/2" | 74.5 | 28 | 103.5 | 97 |
| 50 | 2" | 94.5 | 31 | 120.5 | 107 |
Technical Standard
| Item | Specification |
|---|---|
| Normal Pressure | 1.6 MPa |
| Working Medium | Water, oil |
| Working Temperature | -20 C <= T <= 150 C |
| Thread Standard | ISO 228 |
