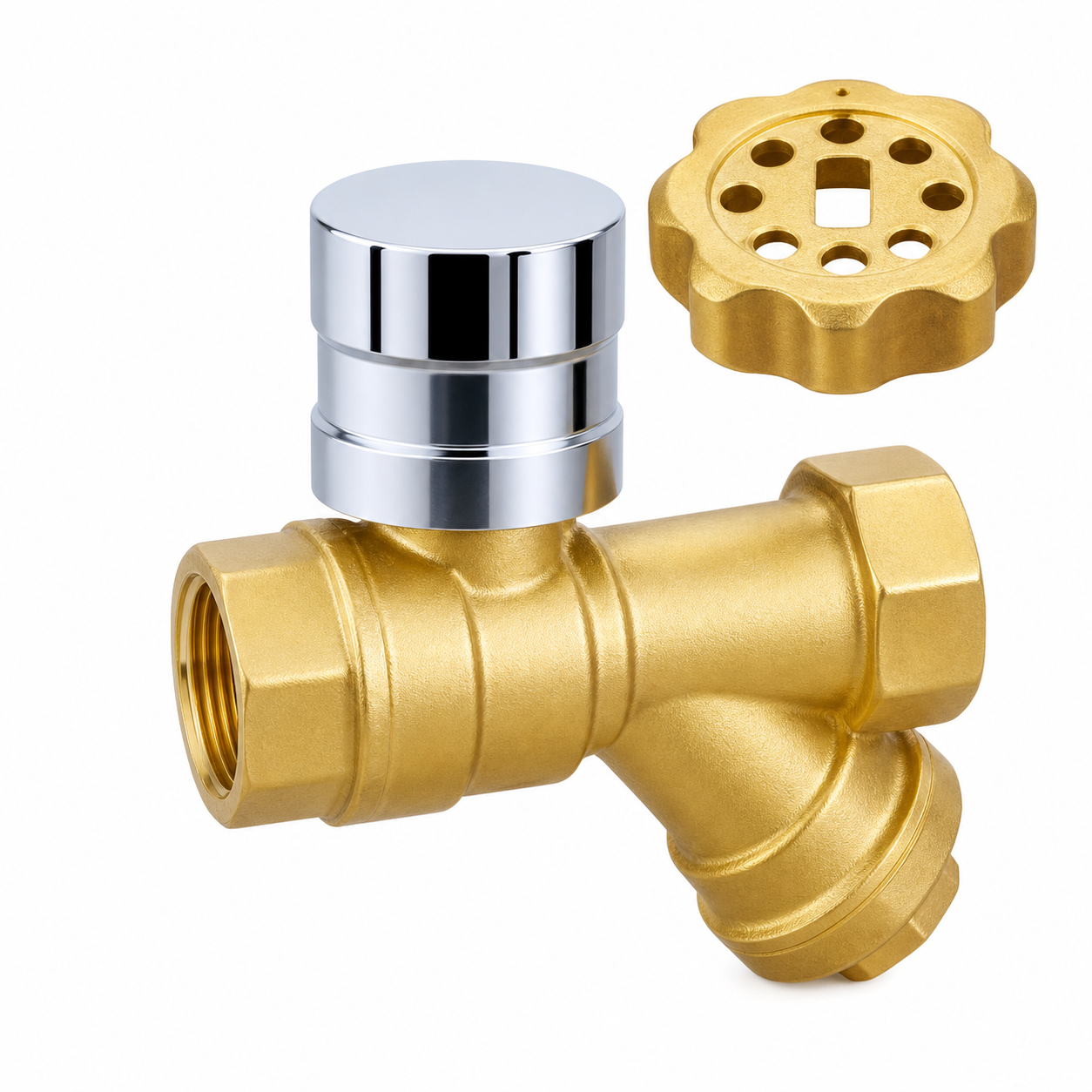

The Brass Magnetic Locking Filter Ball Valve is designed for water and non-corrosive liquid service. It combines a locking valve structure with an integrated angled filter chamber for controlled pipeline filtration.

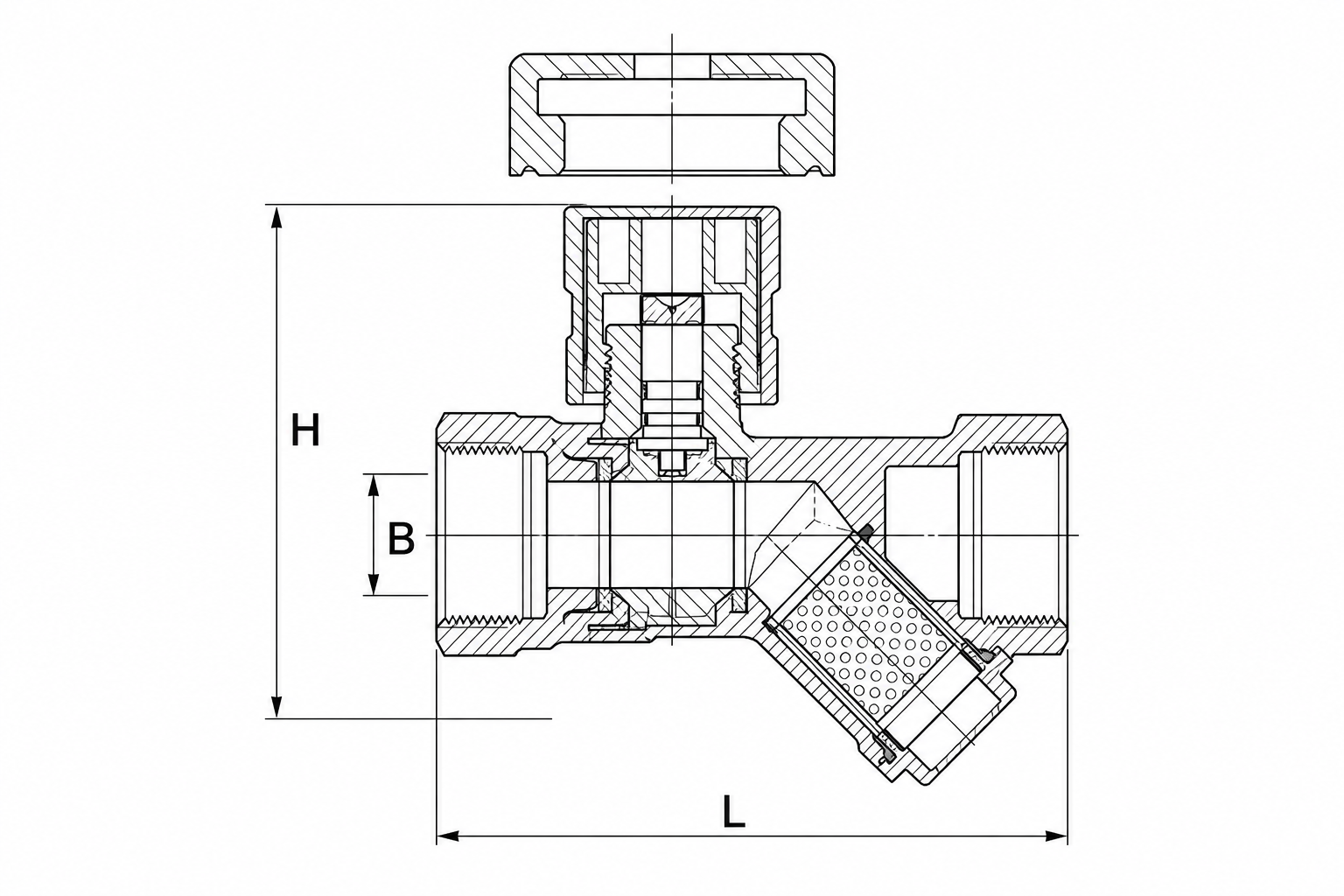

Main Dimensions
| DN | Size | L | B | H | D |
|---|---|---|---|---|---|
| 20 | 3/4" | 87 | 17 | 47 | |
| 25 | 1" | 95 | 22 | 50 |
Technical Standard
| Normal Pressure | 1.6 MPa |
|---|---|
| Working Medium | Water, non-corrosive liquid |
| Working Temperature | -20 C ≤ T ≤ 150 C |
| Thread Standard | ISO 228 |
