Ordering code
Specification
| Bore (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Acting type | Double acting | ||||||||||
| Single acting | / | ||||||||||
| Working Medium | Air (To be filtered by 40μm filter element ) | ||||||||||
| Operating pressure | Double acting | 1~10 Bar | |||||||||
| Single acting | 2~10 Bar | / | |||||||||
| Proof Pressure | 15 Bar | ||||||||||
| Temperature Range | -20~70℃ | ||||||||||
| Operating Speed Range | 50～500mm/s | ||||||||||
| Port Size | M5×0.8 | G1/8 | G1/4 | G3/8 | |||||||
CQ2 Dimension
CQ2B 12~25

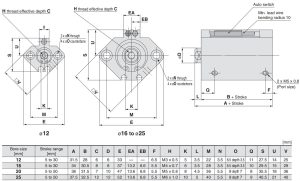

CDQ2B 12~25

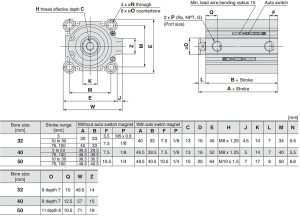

C(D)Q2B 32~50
C(D)Q2B 63~100
