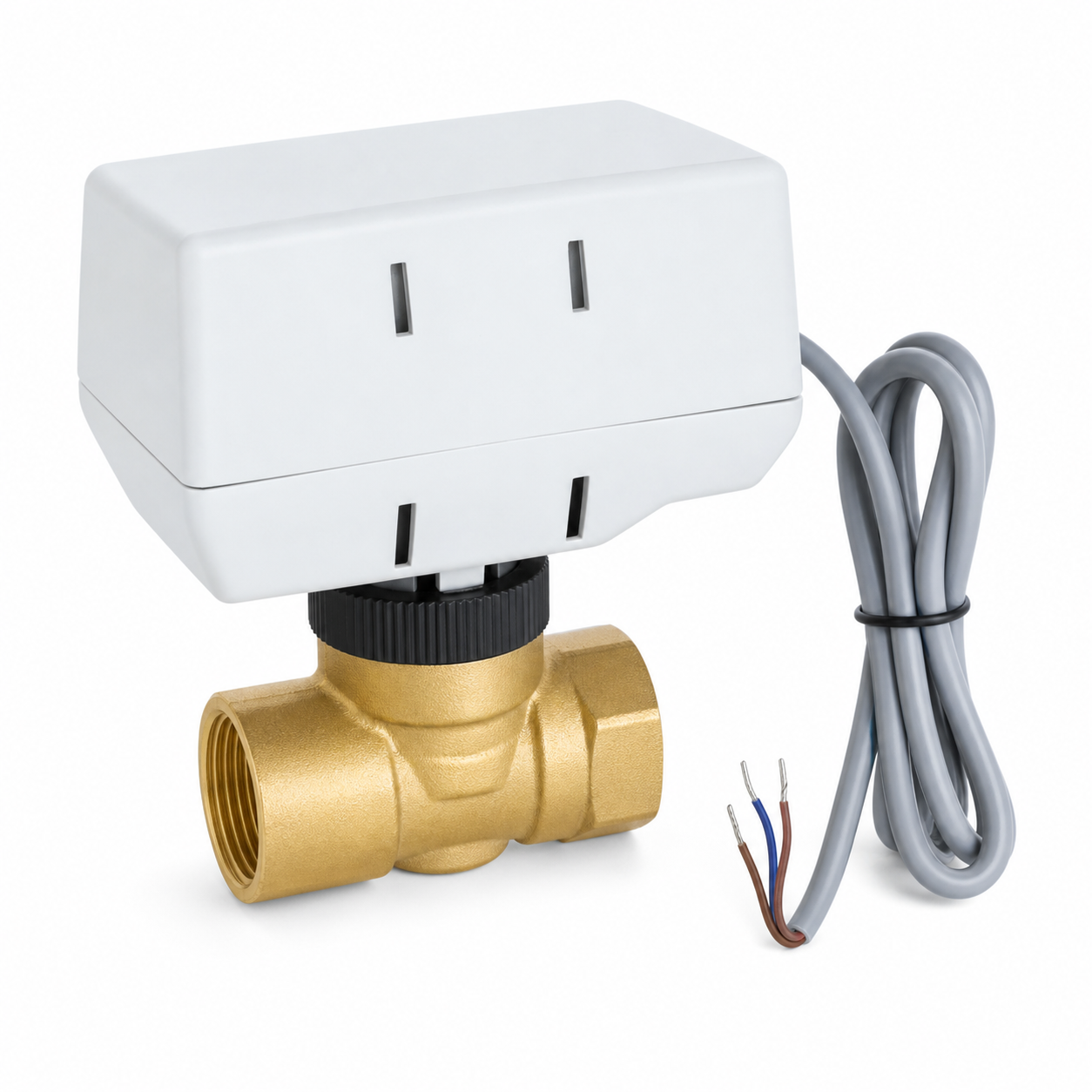

Electric two-way and three-way valve for central air-conditioning and heating pipe systems. It opens and closes pipelines to help control room temperature and is suitable for fan-coil pipeline applications.
Performance Overview
The valve is available for normally closed two-way control and diverting three-way control. It is designed for flexible operation, reliable durability, and low working noise. The actuator can withstand the high-temperature and high-humidity environment commonly found in steady fan-coil installations.
The valve includes manual operating support for system commissioning and maintenance. Optional auxiliary switch configurations can be used for controlling other equipment, and different pipe connection forms can be selected to suit different voltage and installation requirements.
Technical Parameters
| Voltage | 24 VAC, 110 VAC, 220 VAC, +/-10%, 50/60 Hz |
|---|---|
| Power | 6 VA |
| Ambient Temperature | -5 C ~ 55 C |
| Shell Material | Flame retardant PC; internal parts are flame retardant reinforced PA66 and POM |
| Valve Body Nominal Pressure | PN16 |
| Valve Body Medium Temperature | 1~110 C |
| Valve Body Material | Brass |
| Valve Stem Material | Stainless steel |
