Ordering code
Specification
| Model | K23R7-L6 K25R7-L6 |
K23R7-L8 K25R7-L8 |
| Working Medium | Compressed Air | |
| Port Size | G1/8″ | G1/4″ |
| Working Pressure | 0.5～8 Bar | |
| Ambient Temperature | -5～50℃ | |
| Operating Force | ≤80N | ≤100N |
| Effective Cross Section Area | 10 mm² | 20 mm² |

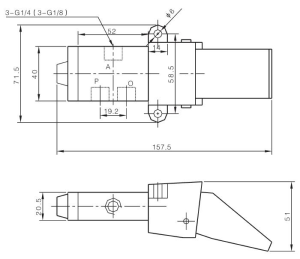

Dimension
