Malleable Iron 90 Degree M&F Long Bend Fig.1

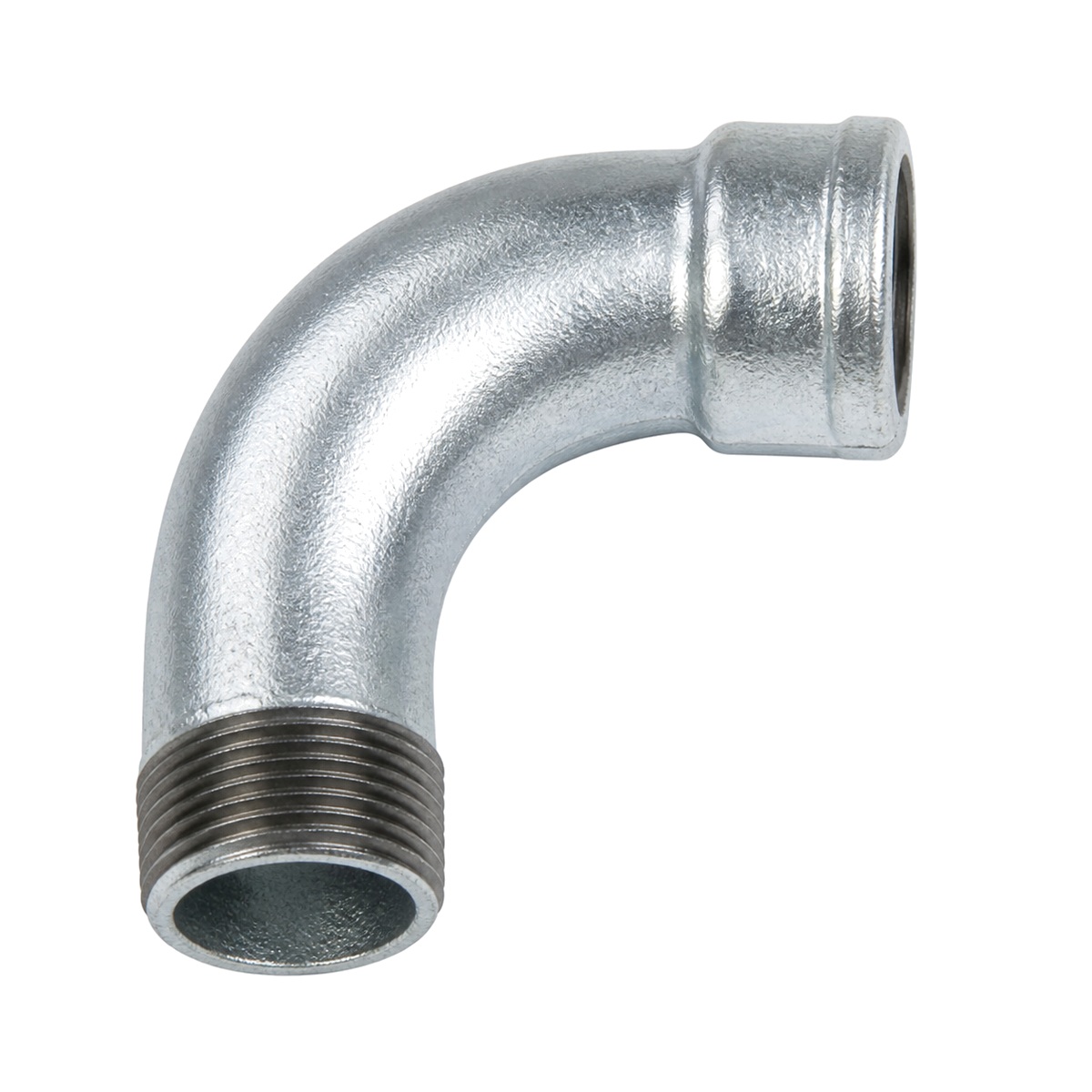

Galvanized and black malleable iron 90 degree male and female long bend pipe fitting, Fig.1.
Standard Specifications
- Material: EN1562 or ISO5922.
- Design and dimensions: EN10242 or ISO49.
- Threads: EN10226 or ISO7-1.
- Tensile strength: 350 MPa.
- Elongation: 10%.
- Zinc coating: 70 um.
- Working pressure: 363 PSI.
- Available size range: 1/8 in. to 6 in.
- Surface treatment: hot-dip galvanized, electrogalvanization, black.
Dimensions and Packing

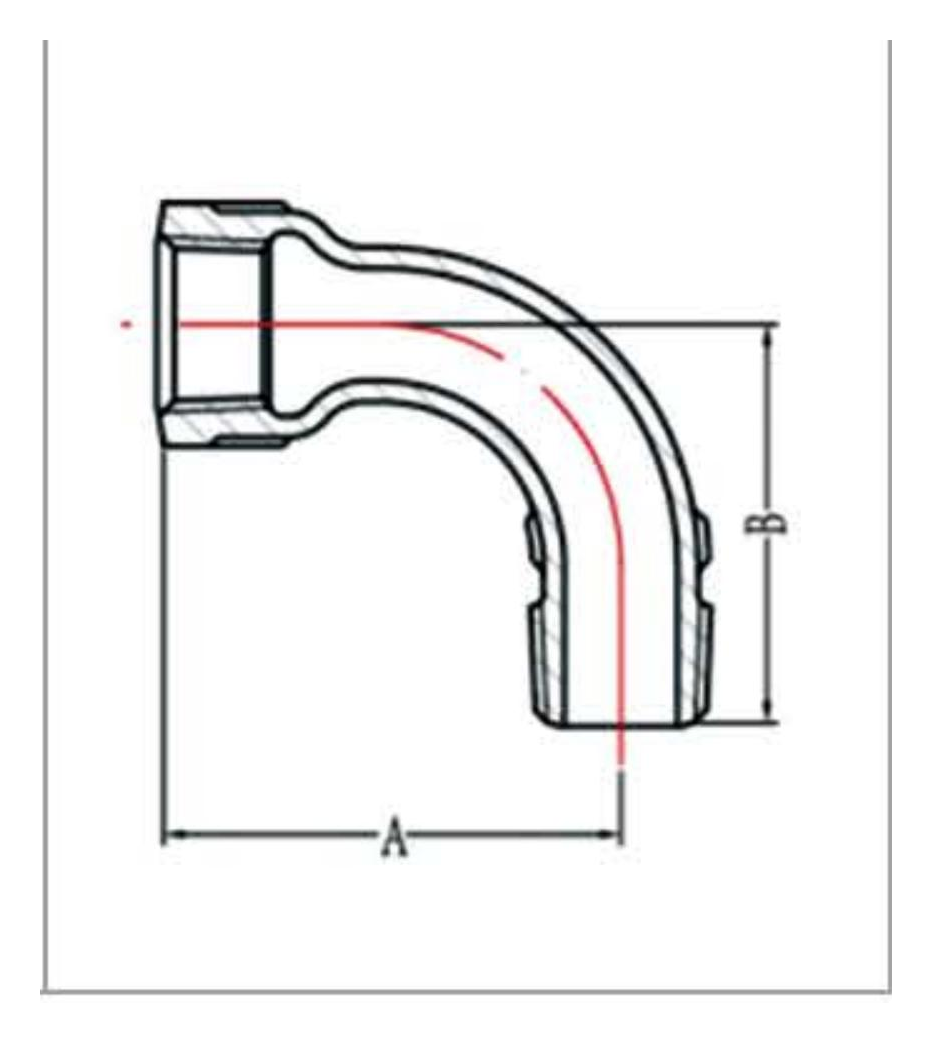

| Code | NPS | DN | A (mm) | B (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing (pcs/ctn) |
|---|---|---|---|---|---|---|---|
| JZGAL1001 | 3/8 | 10 | 48 | 42 | 71.54 | 73 | 400 |
| JZGAL1002 | 1/2 | 15 | 55 | 48 | 115.64 | 118 | 280 |
| JZGAL1003 | 3/4 | 20 | 69 | 60 | 187.18 | 191 | 150 |
| JZGAL1004 | 1 | 25 | 85 | 75 | 304.78 | 311 | 80 |
| JZGAL1005 | 1-1/4 | 32 | 105 | 95 | 519.4 | 530 | 50 |
| JZGAL1006 | 1-1/2 | 40 | 116 | 105 | 665.42 | 679 | 24 |
| JZGAL1007 | 2 | 50 | 140 | 131 | 1123.08 | 1146 | 12 |
| JZGAL1008 | 2-1/2 | 65 | 176 | 165 | 2067.8 | 2110 | 8 |
| JZGAL1009 | 3 | 80 | 205 | 190 | 2955.68 | 3016 | 6 |
| JZGAL1010 | 4 | 100 | 260 | 245 | 5396.86 | 5507 | 2 |
Product Details
| Product Type | 90 degree male and female long bend for smooth threaded pipe direction changes |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
