Malleable Iron Equal Tee Fig.130

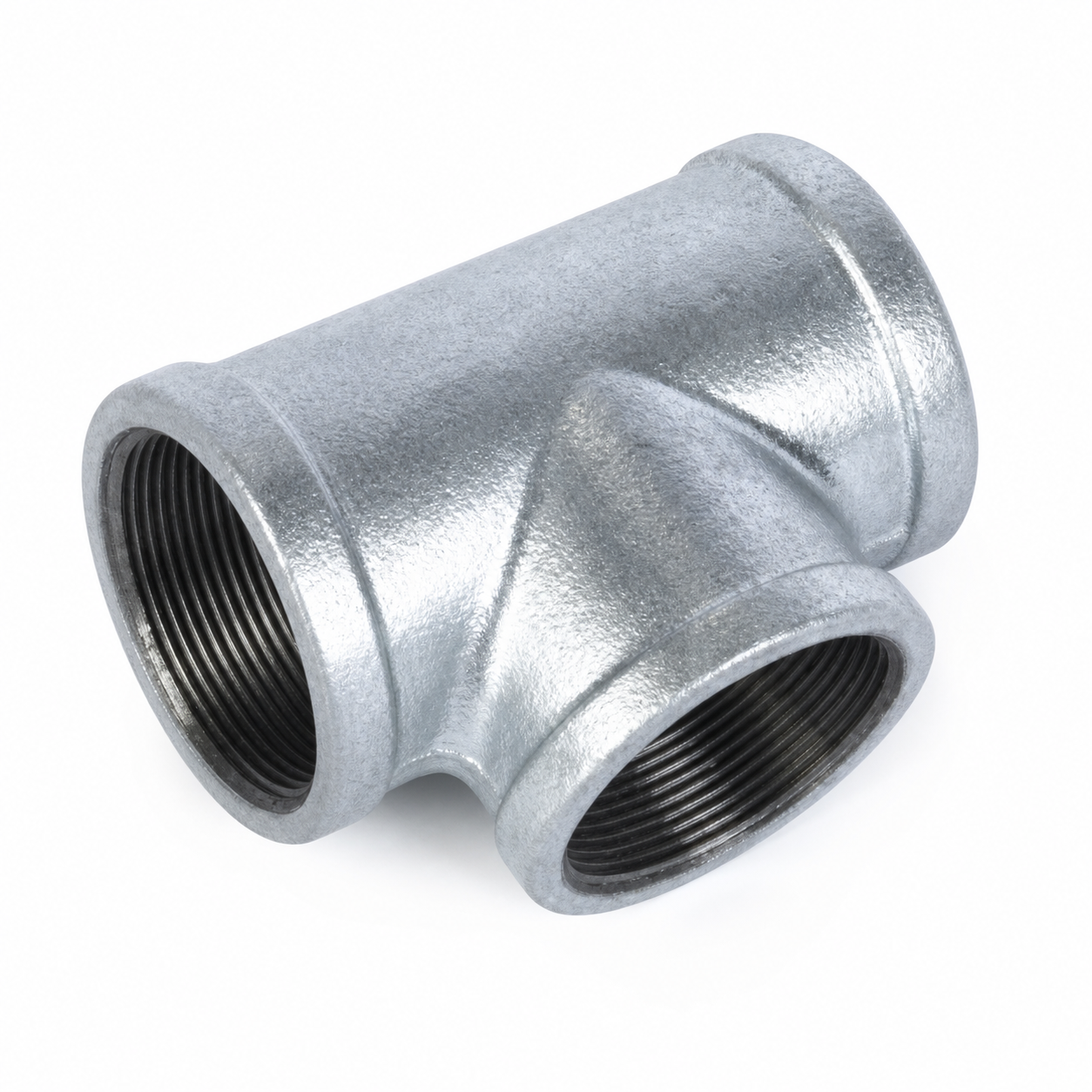

Galvanized malleable iron equal tee for threaded branch pipe connections. Fig.130 provides three equal female threaded outlets for pipe distribution and branch layouts.
Features
- Equal tee body with three female threaded openings.
- Galvanized malleable iron construction for threaded pipe branch connections.
- Typed dimensional, weight, and carton packing data for search visibility.

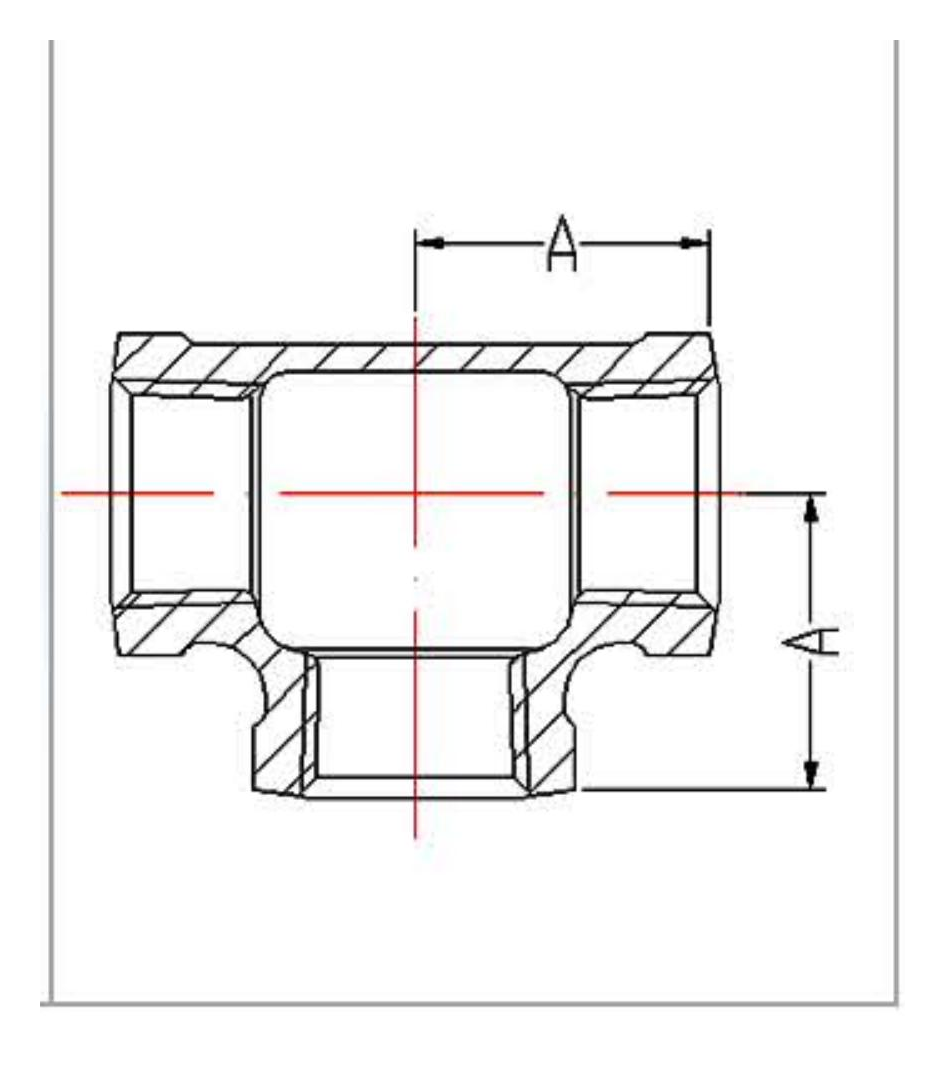

Dimensions and Packing
| Code | NPS | DN | A (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|
| JZGAL13001 | 1/8 in. | 6 | 18 | 44.1 | 45 | 400 |
| JZGAL13002 | 1/4 in. | 8 | 20 | 63.7 | 65 | 400 |
| JZGAL13003 | 3/8 in. | 10 | 24 | 88.2 | 90 | 300 |
| JZGAL13004 | 1/2 in. | 15 | 27 | 137.2 | 140 | 240 |
| JZGAL13005 | 3/4 in. | 20 | 32 | 198.94 | 203 | 140 |
| JZGAL13006 | 1 in. | 25 | 37 | 308.7 | 315 | 90 |
| JZGAL13007 | 1-1/4 in. | 32 | 44.5 | 479.22 | 489 | 56 |
| JZGAL13008 | 1-1/2 in. | 40 | 48.5 | 600.74 | 613 | 40 |
| JZGAL13009 | 2 in. | 50 | 57 | 977.06 | 997 | 20 |
| JZGAL13010 | 2-1/2 in. | 65 | 68.5 | 1520.96 | 1552 | 12 |
| JZGAL13011 | 3 in. | 80 | 77.5 | 2045.26 | 2087 | 10 |
| JZGAL13012 | 4 in. | 100 | 96.5 | 3589.74 | 3663 | 4 |
| JZGAL13013 | 6 in. | 150 | 129 | 8157.52 | 8324 | 2 |
Standard Specification
Standard Specifications
- Material: EN1562 or ISO5922.
- Design and dimensions: EN10242 or ISO49.
- Threads: EN10226 or ISO7-1.
- Tensile strength: 350 MPa.
- Elongation: 10%.
- Zinc coating: 70 um.
- Working pressure: 363 PSI.
- Available size range: 1/8 in. to 6 in.
- Surface treatment: hot-dip galvanized, electrogalvanization, black.
Product Details
| Product Type | Equal tee for threaded branch pipe connection |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
