Malleable Iron Hexagon Nipple Fig.280

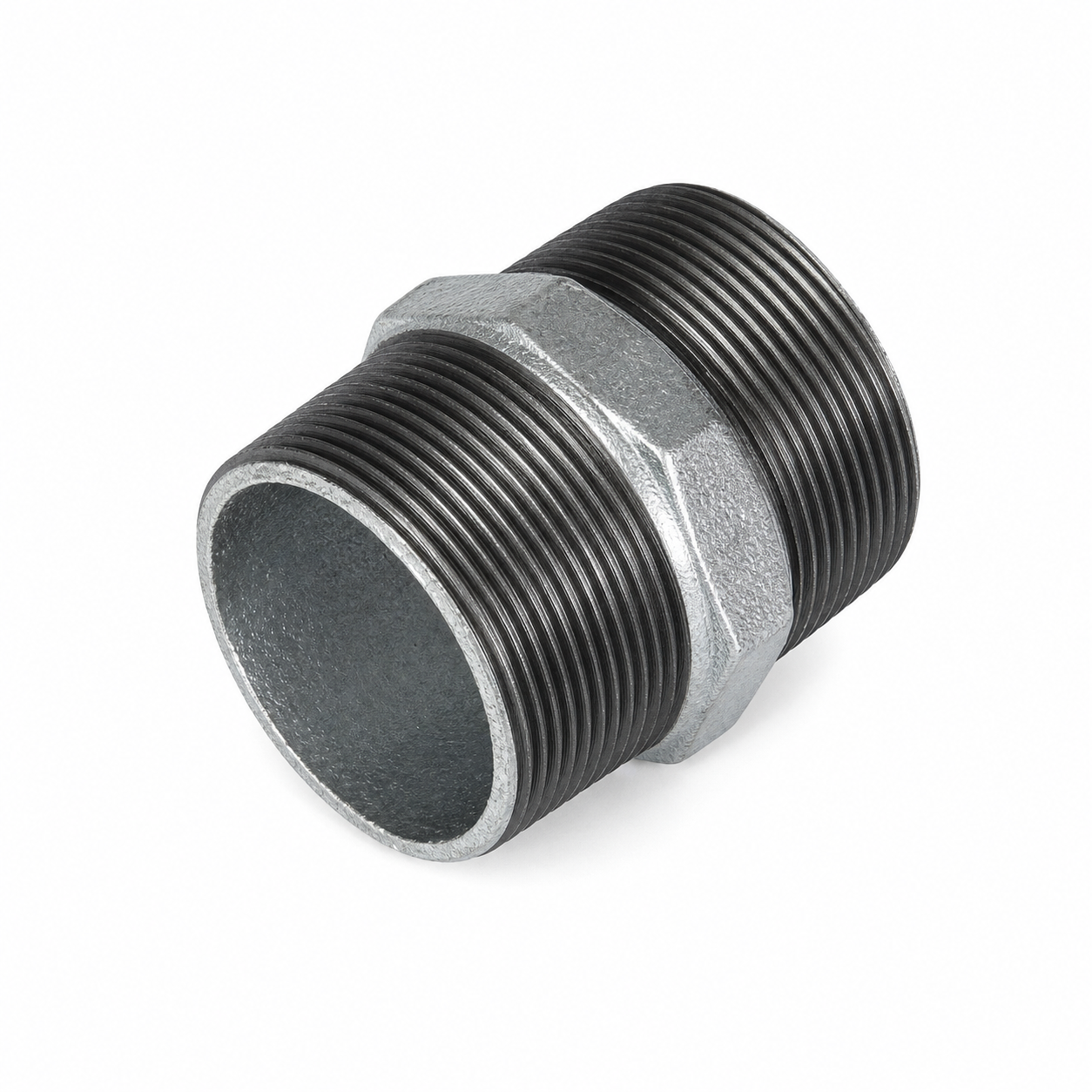

Galvanized malleable iron hexagon nipple with male pipe threads on both ends and a center hex section for wrench tightening.
Product Features
- Material: malleable iron
- Finish: black or galvanized
- Connection: male thread x male thread
- Application: water, gas, fire protection, plumbing, and general piping systems
- Catalog reference: Fig.280

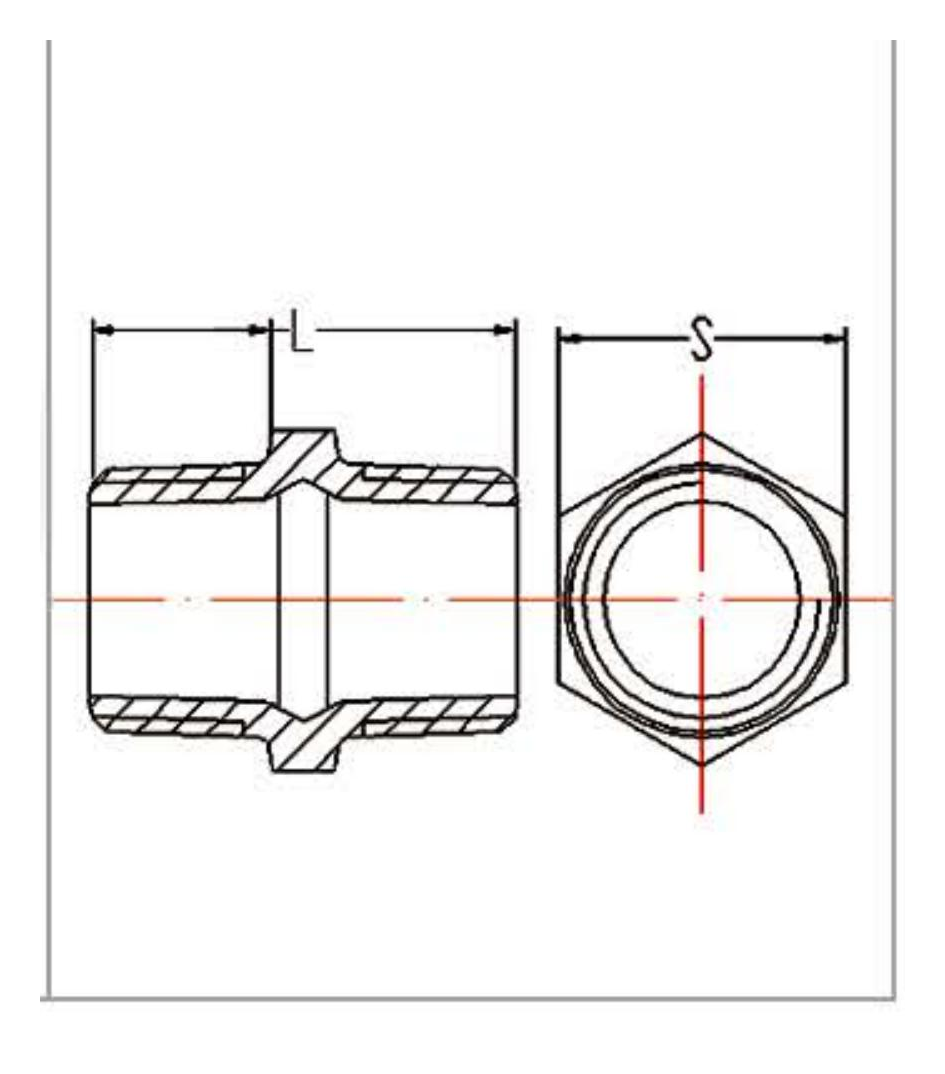

Dimensions and Packing
| Code | NPS | DN | L (mm) | S (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|---|
| JZGAL28001 | 1/4 in. | 8 | 36 | 16.7 | 29.4 | 30 | 1000 |
| JZGAL28002 | 3/8 in. | 10 | 36 | 19.2 | 30.38 | 31 | 1000 |
| JZGAL28003 | 1/2 in. | 15 | 44 | 23.6 | 55.86 | 57 | 600 |
| JZGAL28004 | 3/4 in. | 20 | 47 | 29.2 | 84.28 | 86 | 300 |
| JZGAL28005 | 1 in. | 25 | 53 | 36 | 134.26 | 137 | 200 |
| JZGAL28006 | 1-1/4 in. | 32 | 56 | 45 | 186.2 | 190 | 140 |
| JZGAL28007 | 1-1/2 in. | 40 | 58 | 51 | 227.36 | 232 | 104 |
| JZGAL28008 | 2 in. | 50 | 68 | 63 | 365.54 | 373 | 56 |
| JZGAL28009 | 2-1/2 in. | 65 | 73 | 79.4 | 543.9 | 555 | 36 |
| JZGAL28010 | 3 in. | 80 | 81 | 91.6 | 768.32 | 784 | 24 |
| JZGAL28011 | 4 in. | 100 | 95 | 117 | 1237.74 | 1263 | 12 |
Product Details
| Product Type | Hexagon nipple for joining two threaded pipe fittings or pipe sections |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
