    Malleable Iron Reducing Tee Fig.131R

    Category

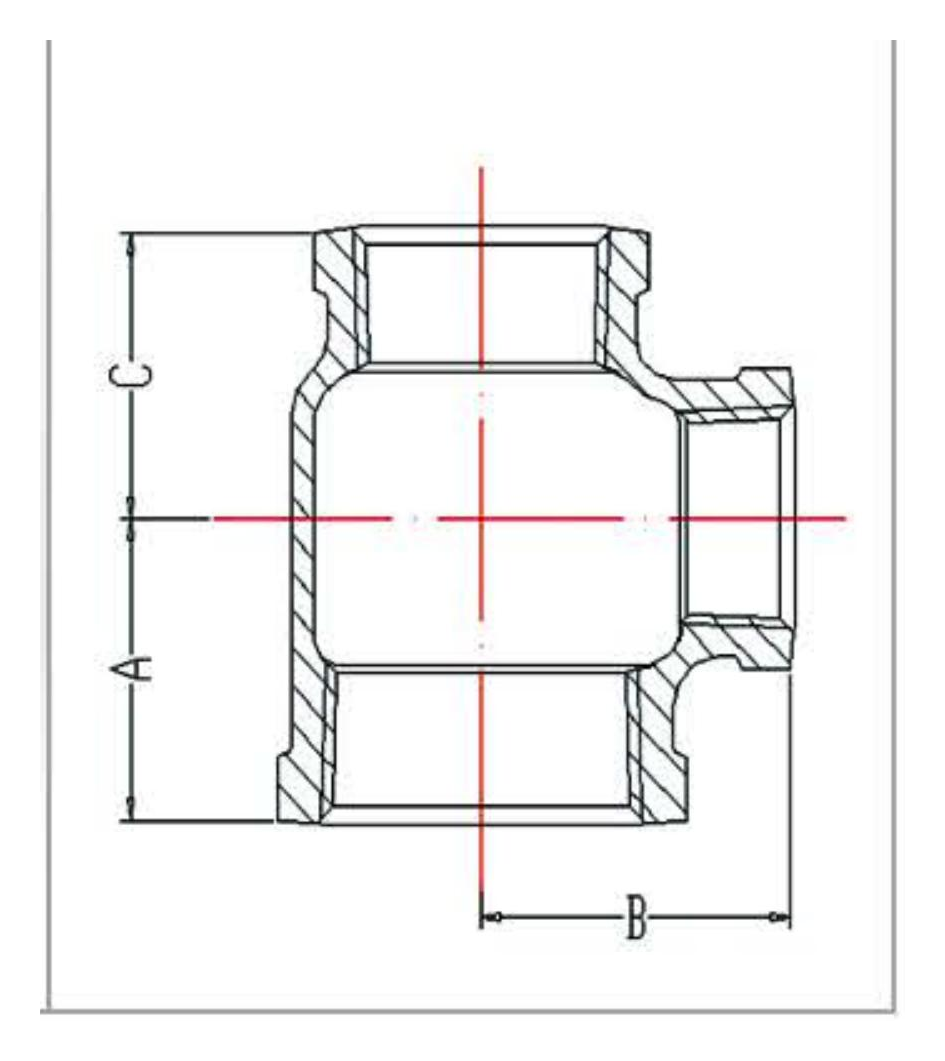

    Malleable Iron Reducing Tee Fig.131R dimension drawing

    Malleable Iron Reducing Tee Fig.131R

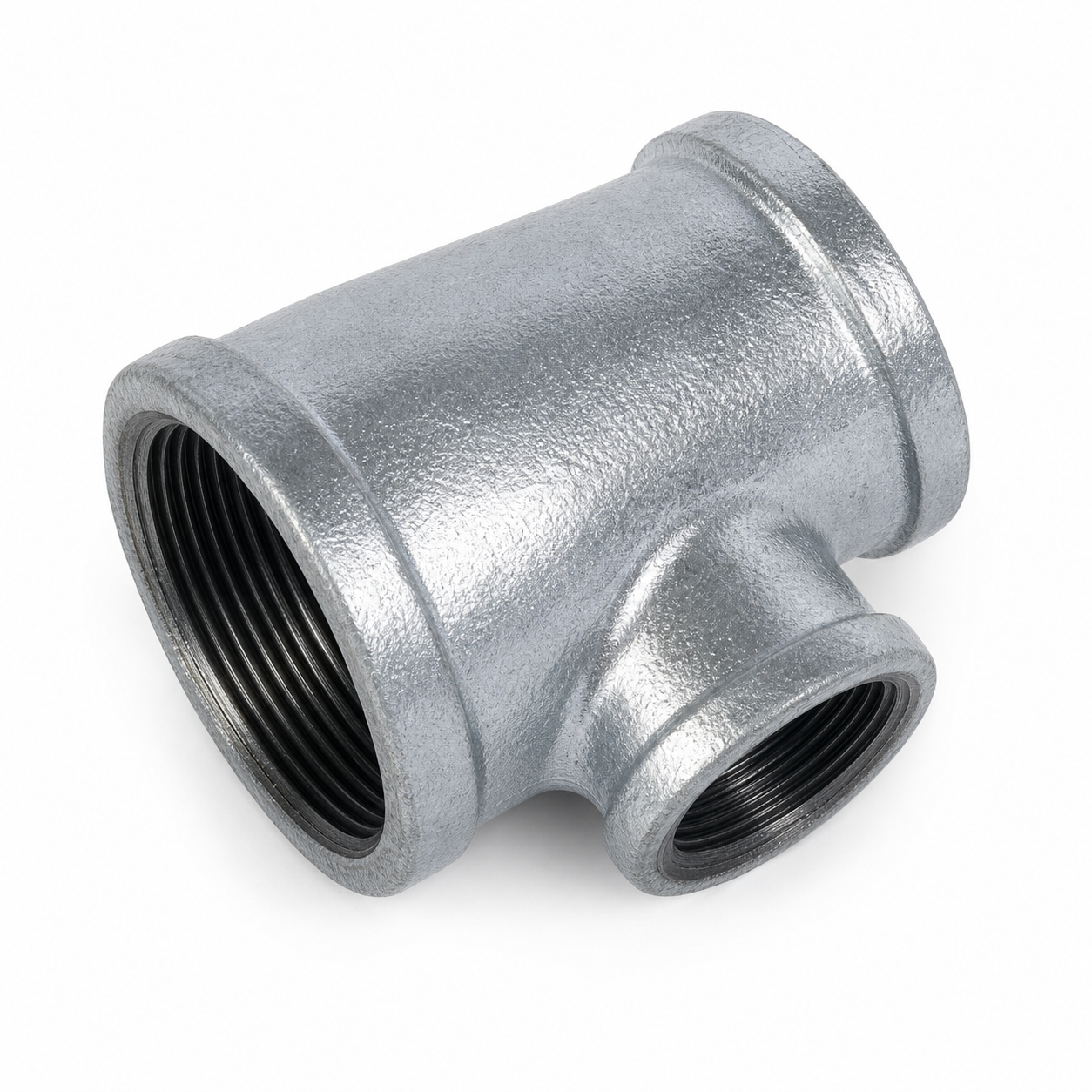

    Galvanized malleable iron reducing tee for threaded pipe branch layouts using a three-size reducing configuration. Fig.131R includes A, B, and C reference dimensions.

    Features

    • Three-size reducing tee configuration for threaded branch pipe layouts.
    • Female threaded galvanized malleable iron fitting.
    • Typed A, B, C dimensions with weight and carton data for search visibility.

    Dimensions and Packing

    Code NPS DN A (mm) B (mm) C (mm) Unit Weight Black (g) Unit Weight Galv. (g) Packing Carton (pcs/ctn)
    JZGAL131R01 3/4 in. x 1/2 in. x 1/2 in. 20 x 15 x 15 29 30 27 159.74 163 120
    JZGAL131R02 1 in. x 1/2 in. x 3/4 in. 25 x 15 x 20 31 33 29 191.1 195 120
    JZGAL131R03 1 in. x 3/4 in. x 3/4 in. 25 x 20 x 20 34 35 32 157.78 161 120
    JZGAL131R04 1-1/4 in. x 1/2 in. x 1 in. 32 x 15 x 25 34 37 31 234.22 239 80
    JZGAL131R05 1-1/4 in. x 3/4 in. x 1 in. 32 x 20 x 25 36 40 34 287.14 293 60
    JZGAL131R06 1-1/4 in. x 1 in. x 1 in. 32 x 25 x 25 39 40 36 355.74 363 60
    JZGAL131R07 1-1/4 in. x 1-1/4 in. x 1 in. 32 x 32 x 25 44.5 44.5 41 406.7 415 40
    JZGAL131R08 1-1/2 in. x 1/2 in. x 1-1/4 in. 40 x 15 x 32 35 41 34 539.98 551 32
    JZGAL131R09 1-1/2 in. x 3/4 in. x 1-1/4 in. 40 x 20 x 32 37 43 36 514.5 525 36
    JZGAL131R10 1-1/2 in. x 1 in. x 1 in. 40 x 25 x 25 40 44 36 641.9 655 28
    JZGAL131R11 1-1/2 in. x 1 in. x 1-1/4 in. 40 x 25 x 32 41 45 40 711.48 726 20
    JZGAL131R12 1-1/2 in. x 1-1/4 in. x 1 in. 40 x 32 x 25 45 47 41 879.06 897 16
    JZGAL131R13 1-1/2 in. x 1-1/4 in. x 1-1/4 in. 40 x 32 x 32 45 47 44.5 1056.44 1078 12
    JZGAL131R14 1-1/2 in. x 1-1/2 in. x 1 in. 40 x 40 x 25 48.5 48.5 45 1025.08 1046 16
    JZGAL131R15 1-1/2 in. x 2 in. x 1-1/4 in. 40 x 50 x 32 54 51 53 1336.72 1364 10
    JZGAL131R16 2 in. x 1/2 in. x 1-1/2 in. 50 x 15 x 40 37 47 35 1622.88 1656 10
    JZGAL131R17 2 in. x 3/4 in. x 1-1/2 in. 50 x 20 x 40 40 49 37 2530.36 2582 6
    JZGAL131R18 2 in. x 1 in. x 1-1/4 in. 50 x 25 x 32 43 51 40 299.88 306 64
    JZGAL131R19 2 in. x 1 in. x 1-1/2 in. 50 x 25 x 40 42 49 40 344.96 352 68
    JZGAL131R20 2 in. x 1-1/4 in. x 1-1/4 in. 50 x 32 x 32 47 53 44.5 392 400 60
    JZGAL131R21 2 in. x 1-1/4 in. x 1-1/2 in. 50 x 32 x 40 47 53 45 491.96 502 40
    JZGAL131R22 2 in. x 1-1/2 in. x 1 in. 50 x 40 x 25 51 54 45 377.3 385 42
    JZGAL131R23 2 in. x 1-1/2 in. x 1-1/2 in. 50 x 40 x 40 51 54 48.5 406.7 415 40
    JZGAL131R24 2 in. x 2 in. x 1 in. 50 x 50 x 25 57 57 51 451.78 461 40
    JZGAL131R25 2-1/2 in. x 1/2 in. x 2 in. 65 x 15 x 50 40.5 56 37 534.1 545 36
    JZGAL131R26 2-1/2 in. x 3/4 in. x 2 in. 65 x 20 x 50 43.5 57 40 620.34 633 30
    JZGAL131R27 2-1/2 in. x 1 in. x 2 in. 65 x 25 x 50 45 58 42 702.66 717 24
    JZGAL131R28 2-1/2 in. x 1-1/4 in. x 1-1/2 in. 65 x 32 x 40 51.5 61 45 599.76 612 30
    JZGAL131R29 2-1/2 in. x 1-1/4 in. x 2 in. 65 x 32 x 50 51.5 61 47 673.26 687 30
    JZGAL131R30 2-1/2 in. x 1-1/2 in. x 2 in. 65 x 40 x 50 54.5 61 51 525.28 536 36
    JZGAL131R31 2-1/2 in. x 2 in. x 2 in. 65 x 50 x 50 59.5 64 57 525.28 536 36
    JZGAL131R32 3 in. x 1 in. x 2-1/2 in. 80 x 25 x 65 49.5 67 47.5 525.28 536 36
    JZGAL131R33 3 in. x 1-1/4 in. x 2-1/2 in. 80 x 32 x 65 54.5 69 51.5 552.72 564 24
    JZGAL131R34 3 in. x 1-1/2 in. x 2-1/2 in. 80 x 40 x 65 57.5 71 54.5 562.52 574 24
    JZGAL131R35 3 in. x 2 in. x 2-1/2 in. 80 x 50 x 65 61.5 71 59.5 705.6 720 16
    JZGAL131R36 3 in. x 2-1/2 in. x 2-1/2 in. 80 x 65 x 65 71.5 74 68.5 754.6 770 16

    Standard Specification

    Standard Specifications

    • Material: EN1562 or ISO5922.
    • Design and dimensions: EN10242 or ISO49.
    • Threads: EN10226 or ISO7-1.
    • Tensile strength: 350 MPa.
    • Elongation: 10%.
    • Zinc coating: 70 um.
    • Working pressure: 363 PSI.
    • Available size range: 1/8 in. to 6 in.
    • Surface treatment: hot-dip galvanized, electrogalvanization, black.

    Product Details

    Product Type Reducing tee for threaded branch pipe size transition
    Material Malleable iron
    Connection Threaded pipe fitting connection
    Dimension Data Size, thread, length and packing information are listed in the dimensions table above
    Applications Water, air, gas and general industrial pipe installations
    Ordering Note Confirm size, thread standard, finish and packing requirement when sending an inquiry
