Malleable Iron Round Flange With 4 Bolt Holes Fig.329

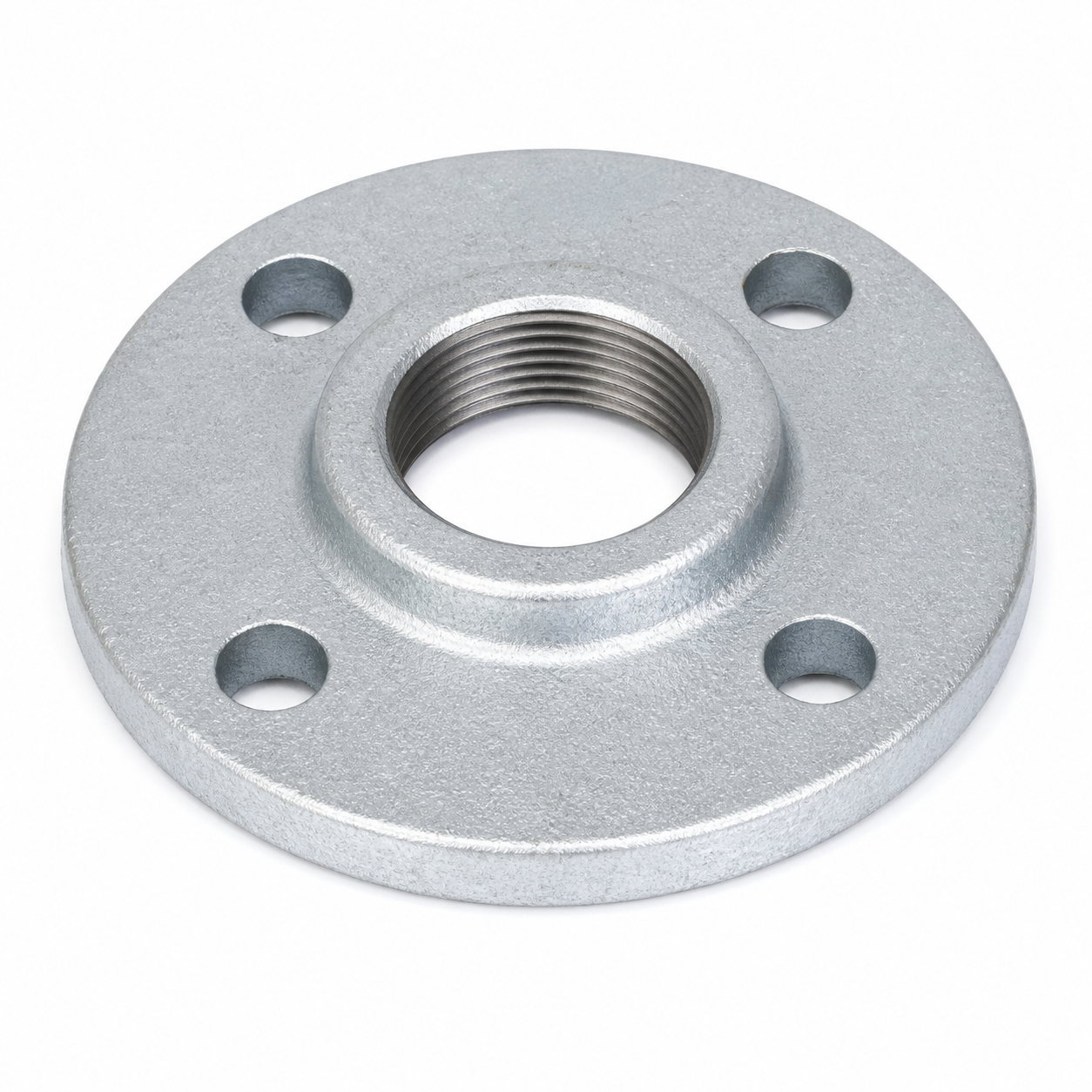

Galvanized malleable iron round flange with four bolt holes and raised female-threaded center opening.
Product Features
- Material: malleable iron
- Finish: black or galvanized
- Connection: female threaded flange
- Body style: round flange with 4 bolt holes
- Catalog reference: Fig.329
Dimensions and Packing

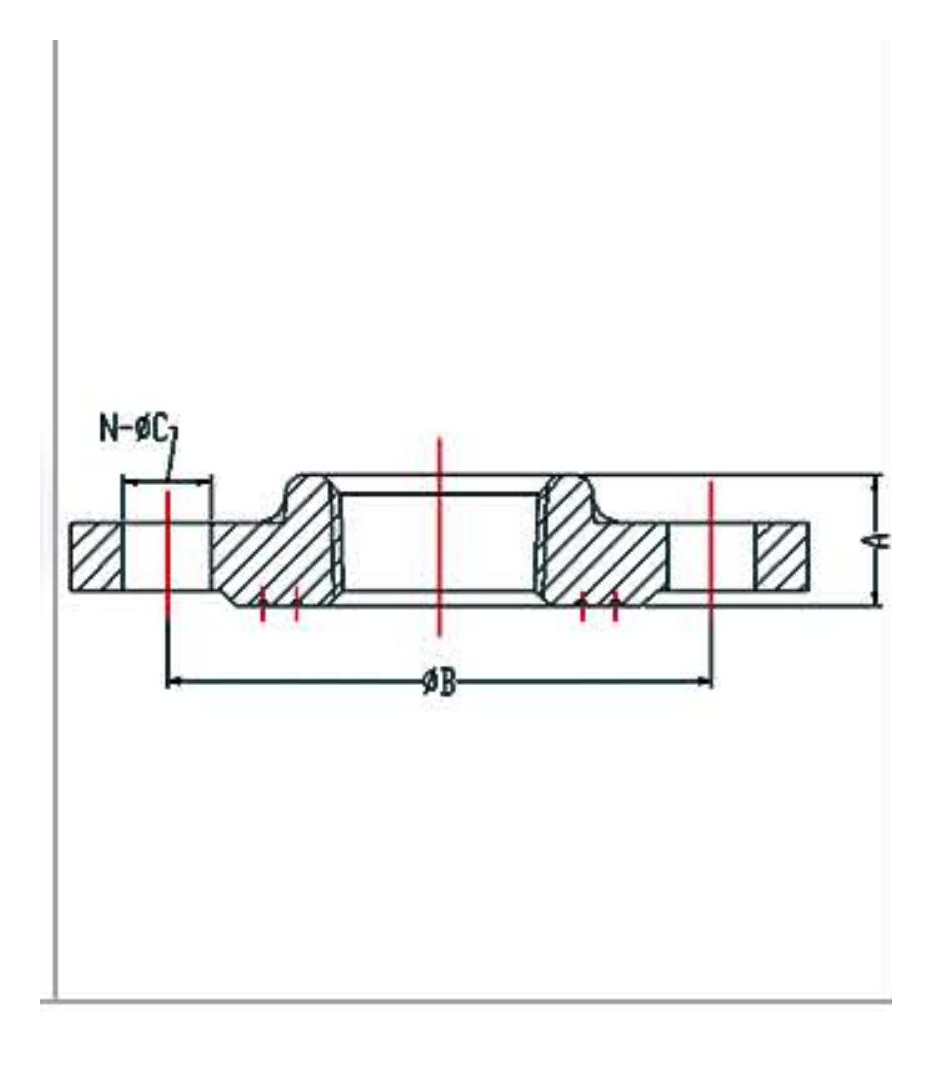

| Code | NPS | DN | A (mm) | B (mm) | N-C (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|---|---|
| JZGAL32901 | 1-1/4 in. | 32 | 24 | 105 | 4-18 | 1431.78 | 1461 | 20 |
| JZGAL32902 | 1-1/2 in. | 40 | 26 | 110 | 4-18 | 1684.62 | 1719 | 20 |
| JZGAL32903 | 2 in. | 50 | 29 | 125 | 4-18 | 2223.62 | 2269 | 16 |
| JZGAL32904 | 2-1/2 in. | 65 | 33 | 145 | 4-18 | 3087 | 3150 | 12 |
| JZGAL32905 | 3 in. | 80 | 34 | 160 | 8-18 | 3543.68 | 3616 | 8 |
| JZGAL32906 | 4 in. | 100 | 39 | 180 | 8-18 | 4154.22 | 4239 | 8 |
| JZGAL32907 | 6 in. | 150 | 42 | 240 | 8-22 | 7644 | 7800 | 4 |
Standard Specification
- Material: malleable iron according to EN1562 / ISO5922.
- Dimensions: EN10242 / ISO49.
- Threads: EN10226 / ISO7-1.
- Minimum tensile strength: 350 MPa.
- Surface finish: black or hot-dip galvanized; galvanized zinc coating thickness approximately 70 um.
- Recommended working pressure: 363 PSI.
Product Details
| Product Type | Round flange with four bolt holes for threaded pipe support and mounting |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
