Ordering Code
Specification
| Model | PU220-01AR | PU220-02AR | PU220-03AR | PU220-03A | PU220-04A | PU220-06A | PU220-08A |
| Working Medium | Air,water,Oil | ||||||
| Operation | Direct acting type | ||||||
| Type | Nomally closed | ||||||
| Orifice | 1.5 | 2.3 | 8 | 13 | 13 | 20 | 25 |
| Port Size | 1/8″ | 1/4″ | 3/8″ | 3/8″ | 1/2″ | 3/4″ | 1″ |
| Working Pressure | 0~10 Bar | ||||||
| Max. pressure Resistance | 15 Bar | ||||||
| Operating Temperature Range | -5~80℃ | ||||||

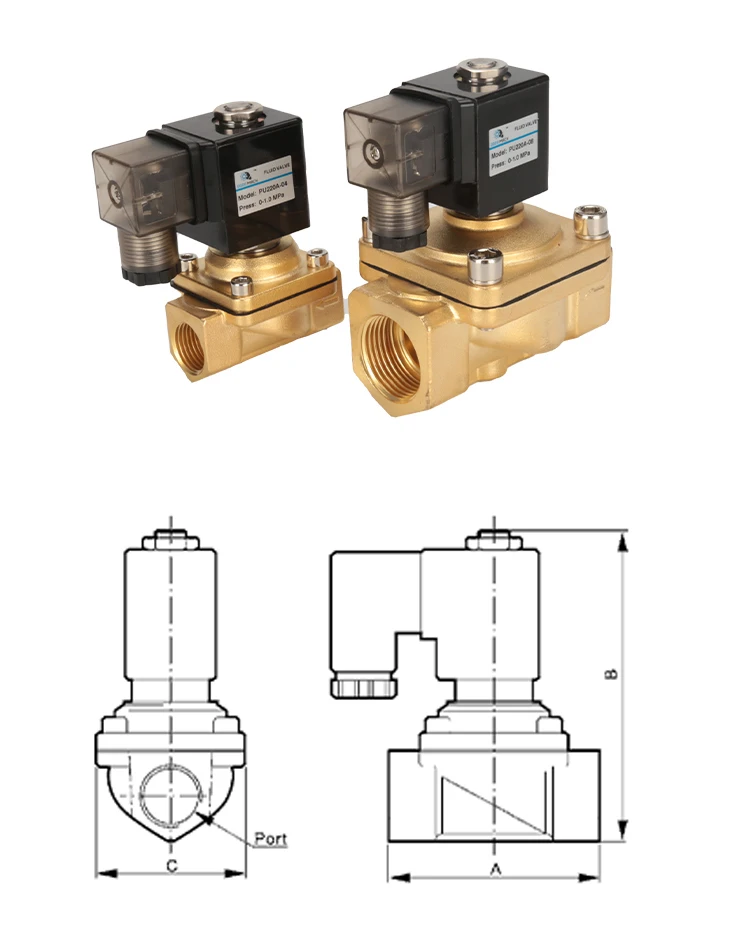

Dimension
| Model | Port | A | B | C |
| PU220-03A | 3/8″ | 66.5 | 101 | 48 |
| PU220-04A | 1/2″ | 66.5 | 101 | 48 |
| PU220-06A | 3/4″ | 71 | 107 | 58 |
| PU220-08A | 1″ | 96 | 120.5 | 71 |
