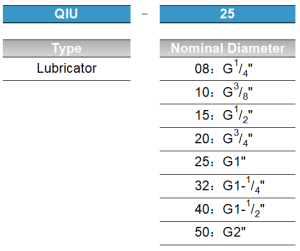

Ordering code
Specification
| Model | QIU-8 | QIU-10 | QIU-15 | QIU-20 | QIU-25 | QIU-32 | QIU-40 | QIU-50 |
| Environment temperature | -5~60℃ | |||||||
| Max.input pressure | 1.0MPa | |||||||
| Pressure range | 0.05~0.85MPa | |||||||

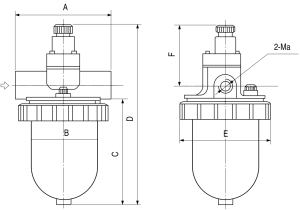

Dimension
| Model | Ma | A | B | C | D | E | F |
| QIU-8 | G1/4“ | 90 | Ø70 | 114 | 200 | Ø88 | 69 |
| QIU-10 | G3/8“ | ||||||
| QIU-15 | G1/2“ | ||||||
| QIU-20 | G3/4“ | 115 | Ø90 | 151 | 250 | Ø110 | 74 |
| QIU-25 | G1″ | ||||||
| QIU-40 | G11/2“ | 132 | 270 | 105 | |||
| QIU-50 | G2″ |
