    Stainless Branch Outlet Fitting Socket

    Categories ,

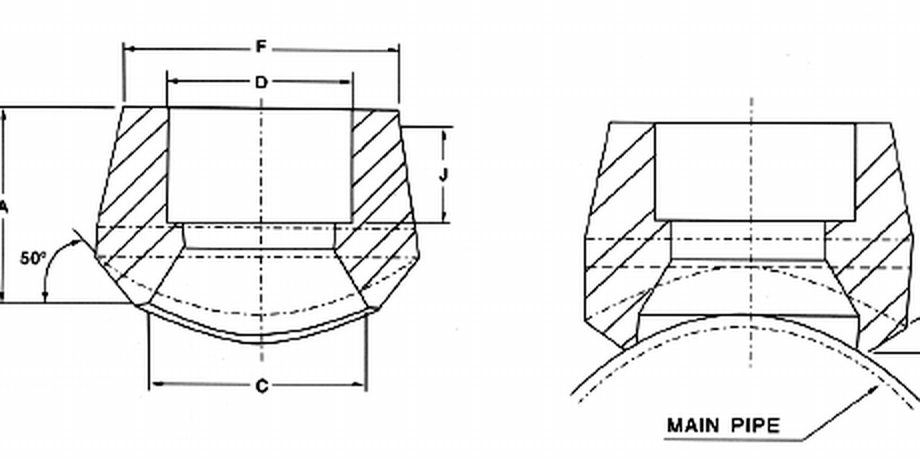

    Stainless Branch Outlet Fitting Socket dimension drawing

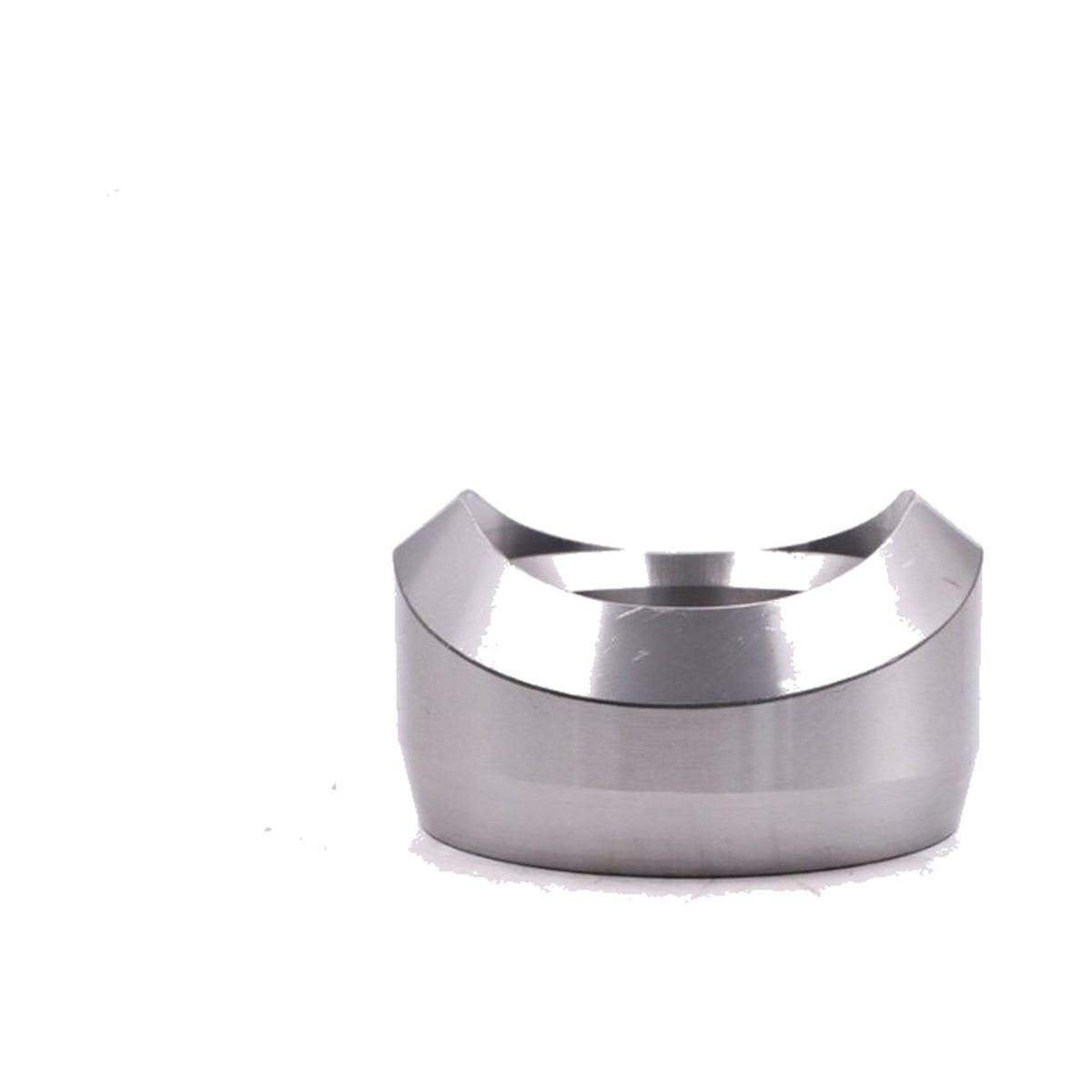

    Stainless Branch Outlet Fitting Socket

    Stainless steel socket branch outlet fitting for reducing branch connections. Dimensions are typed from the OTB high pressure fittings catalog, MSS-SP-97-2001, in millimeters.

    Item Specification
    Product Branch Outlet Fitting Socket
    Standard MSS-SP-97-2001
    Connection Socket weld outlet
    Socket Dimension ASME B16.11
    Dimensions Millimeters
    Pressure Classes 3000LB and 6000LB

    Socket Branch Outlet Dimensions

    Class Run Pipe Size (in) Outlet Pipe NPS A C D F J Min
    3000LB Standard and Extra Strong 36-3/8 1/8 19.0 13.7 10.9 17.3 10.0
    3000LB Standard and Extra Strong 3/8 1/4 19.0 13.7 14.4 22.0 10.0
    3000LB Standard and Extra Strong 1/2 3/8 21.0 17.1 17.8 25.8 10.0
    3000LB Standard and Extra Strong 3/4 1/2 25.0 21.3 22.0 31.3 10.0
    3000LB Standard and Extra Strong 1 3/4 27.0 26.7 27.3 37.1 13.0
    3000LB Standard and Extra Strong 1-1/4 1 33.0 33.4 34.1 45.5 13.0
    3000LB Standard and Extra Strong 1-1/2 1-1/4 33.0 42.2 42.8 54.9 13.0
    3000LB Standard and Extra Strong 2 1-1/2 35.0 48.3 48.9 61.6 13.0
    3000LB Standard and Extra Strong 2-1/2 2 38.0 60.3 61.4 75.3 16.0
    3000LB Standard and Extra Strong 3 2-1/2 46.0 73.0 74.2 91.7 16.0
    3000LB Standard and Extra Strong 4 3 51.0 88.9 90.1 109.1 16.0
    3000LB Standard and Extra Strong 6 4 57.0 114.3 115.8 137.2 19.0
    6000LB Standard 160 and Double Extra Strong 36-3/4 1/2 32.0 16.6 22.0 33.9 10.0
    6000LB Standard 160 and Double Extra Strong 1 3/4 37.0 21.2 27.3 41.2 13.0
    6000LB Standard 160 and Double Extra Strong 1-1/4 1 40.0 27.0 34.1 49.9 13.0
    6000LB Standard 160 and Double Extra Strong 1-1/2 1-1/4 41.0 35.8 42.8 58.6 13.0
    6000LB Standard 160 and Double Extra Strong 2 1-1/2 43.0 41.2 48.9 66.7 13.0
    6000LB Standard 160 and Double Extra Strong 2-1/2 2 52.0 51.6 61.4 83.2 16.0

    Note: Socket dimension in accordance with ASME B16.11.

    Product Details

    Product Type Socket-welding branch outlet fitting for high pressure branch pipe connection
    Material Stainless steel
    Connection Socket-welding branch outlet connection
    Pressure Class High pressure pipe fitting series; confirm pressure class and standard for the selected size
    Applications High pressure piping, industrial fluid systems, petrochemical lines, steam, water and gas service
    Ordering Note Confirm size, pressure class, connection type, material grade and applicable standard when sending an inquiry
