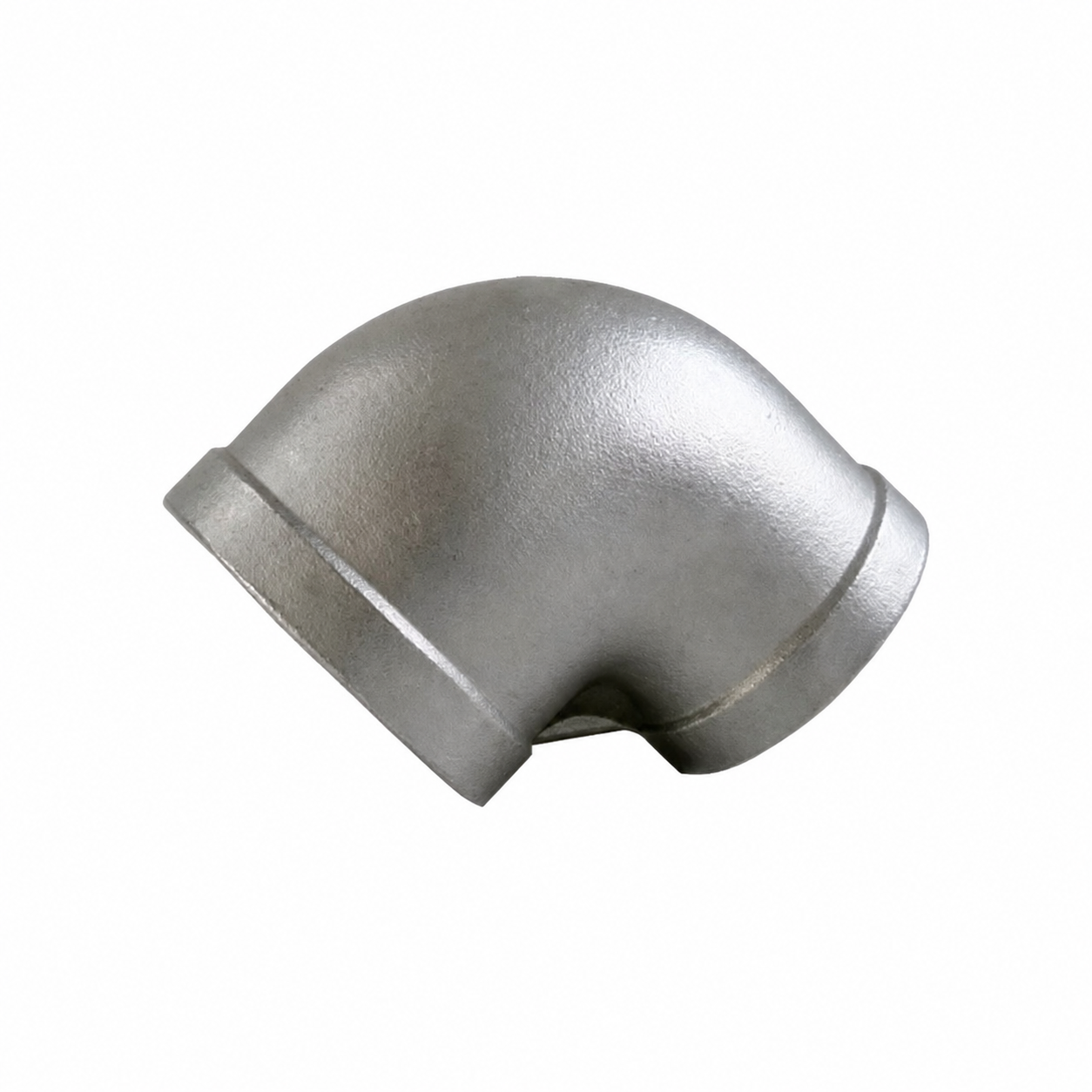

    Stainless Steel 150LB Reducing 90 Degree Elbow

    Stainless steel 150LB reducing 90 degree elbow for threaded pipe fitting systems, used to change pipe direction while connecting different thread sizes.

    Product Details

    Item Specification
    Product Type Stainless Steel 150LB Reducing 90 Degree Elbow
    Connection Female x female threaded reducing 90 degree elbow
    Pressure Rating 150LB
    Thread Standard ASME B1.20.1 (NPT), DIN 2999, BS21, ISO 228/1, ISO 7/1
    Dimension Standard ISO 4144, SP114, EN-10241, JIS
    Material ASTM A351-CF8M / 1.4408, ASTM A351-CF8 / 1.4401, ASTM A216-WCB, AISI 304, 304L, 316, 316L, 301, 430

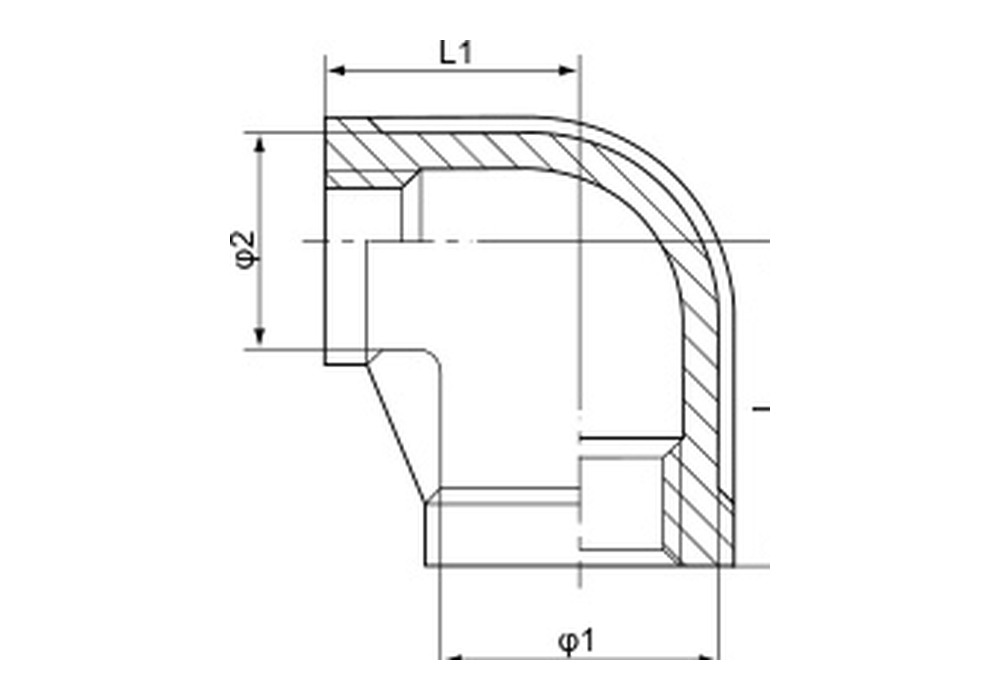

    Dimension Drawing

    Stainless Steel 150LB Reducing 90 Degree Elbow Dimension Drawing

    ISO4144 Dimensions (mm)

    Size 1/4*1/8 3/8*1/4 1/2*1/4 1/2*3/8 3/4*3/8 3/4*1/2 1*1/2 1*3/4 1 1/4*3/4 1 1/4*1
    D1 19 22 26 26 32 32 39 39 48 48
    D2 16 19 19 22 22 26 26 32 32 39
    L 19 23 27 27 32 32 38 38 46 46
    L1 17 19 19 23 23 27 27 32 32 38
    Size 1 1/2*1 1 1/2*1 1/4 2*1 1/4 2*1 1/2 2 1/2*1 1/2 2 1/2*2 3*2 3*2 1/2 4*2 1/2 4*3
    D1 55 55 67 67 83.5 83.5 97 97 123 123
    D2 39 48 48 55 55 67 67 83.5 83.5 97
    L 48 48 57 57 69 69 78 78 96 96
    L1 38 46 46 48 48 57 57 69 69 78

    SP-114 Dimensions (mm)

    Size 1/4*1/8 3/8*1/4 1/2*1/4 1/2*3/8 3/4*3/8 3/4*1/2 1*1/2 1*3/4 1 1/4*3/4 1 1/4*1
    D1 15.4 19.7 26.2 26.2 31.9 31.9 39.8 39.8 47.8 47.8
    D2 13.5 15.4 15.4 19.7 19.7 26.2 26.2 31.9 31.9 39.8
    L 22 24 21 26 26.5 26.5 32.5 34 38 40
    L1 20 24 22 25 28 28 34 35 40 40
    Size 1 1/2*1 1 1/2*1 1/4 2*1 1/4 2*1 1/2 2 1/2*1 1/2 2 1/2*2 3*2 3*2 1/2 4*2 1/2 4*3
    D1 55.9 55.9 66.5 66.5 83.3 83.3 98.2 98.2 123 123
    D2 39.8 47.8 47.8 55.9 55.9 66.5 66.5 83.3 83.3 98.2
    L 42 43 45 52 54 61 63 70 72 79
    L1 45 47 52 55 60 63 68 71 76 80

    EN-10241 Dimensions (mm)

    Size 1/4*1/8 3/8*1/4 1/2*1/4 1/2*3/8 3/4*3/8 3/4*1/2 1*1/2 1*3/4 1 1/4*3/4 1 1/4*1
    D1 21.3 23.5 29 29 35 35 43 43 52 52
    D2 17 21.3 21.3 23.5 23.5 29 29 35 35 43
    L 21 21.3 27 27 33 33 38 38 45 45
    L1 19 21 21 21.3 21.3 27 27 33 33 38
    Size 1 1/2*1 1 1/2*1 1/4 2*1 1/4 2*1 1/2 2 1/2*1 1/2 2 1/2*2 3*2 3*2 1/2 4*2 1/2 4*3
    D1 58 58 71 71 86.5 86.5 99.5 99.5 125 125
    D2 43 52 52 58 58 71 71 86.5 86.5 99.5
    L 50 50 58 58 69.7 69.7 77.5 77.5 98.2 98.2
    L1 38 45 45 50 50 58 58 69.7 69.7 77.5
