Ordering Code
Dimension
| Model | T | H | L |
| XQ-06 | G1/8“ | 33 | 28 |
| XQ-08 | G1/4“ | 45 | 36 |
| XQ-10 | G3/8“ | 59 | 44 |
| XQ-15 | G1/2“ | 66 | 52 |
| XQ-20 | G3/4“ | 85 | 63 |
| XQ-25 | G1″ | 96 | 72 |

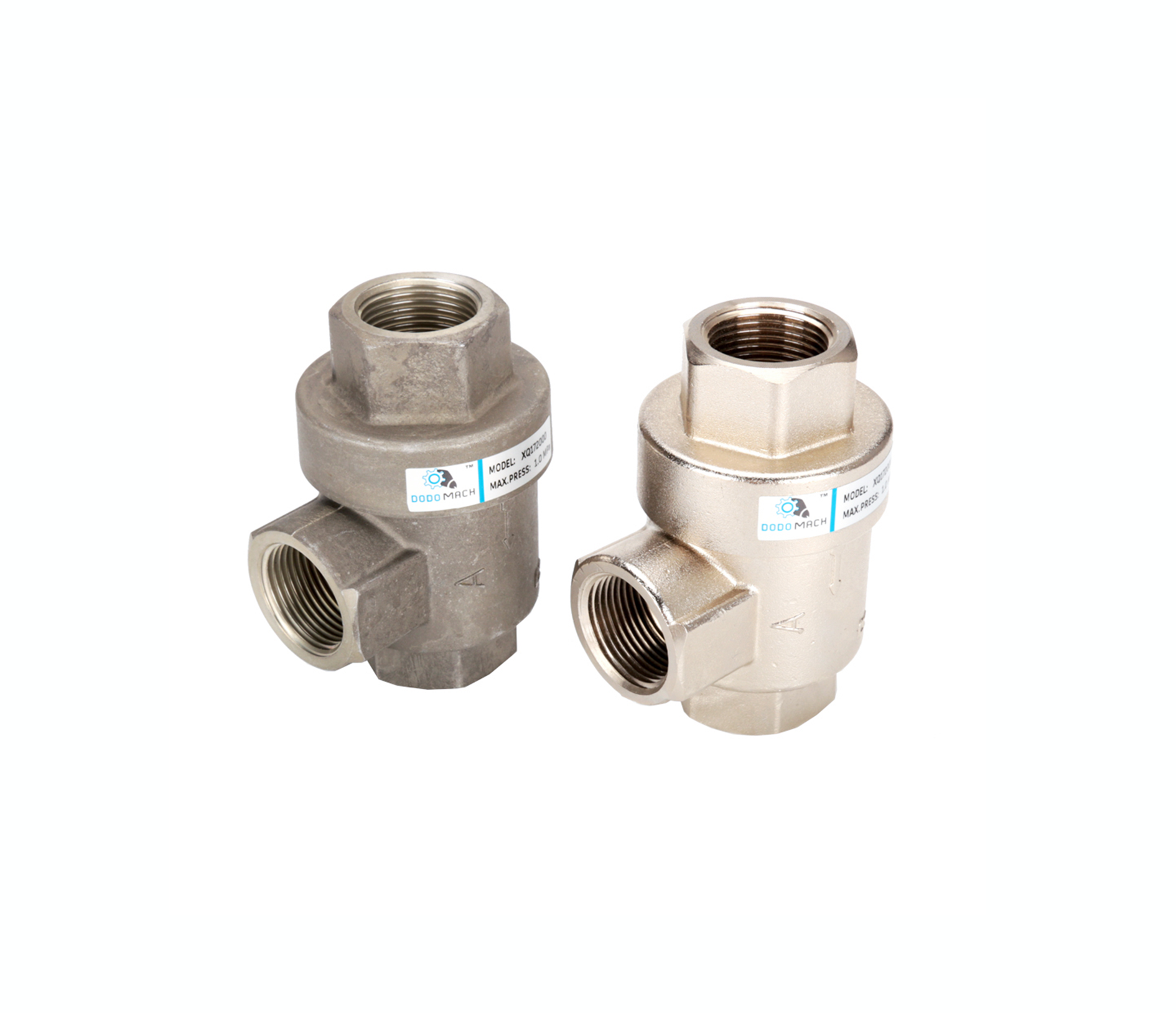

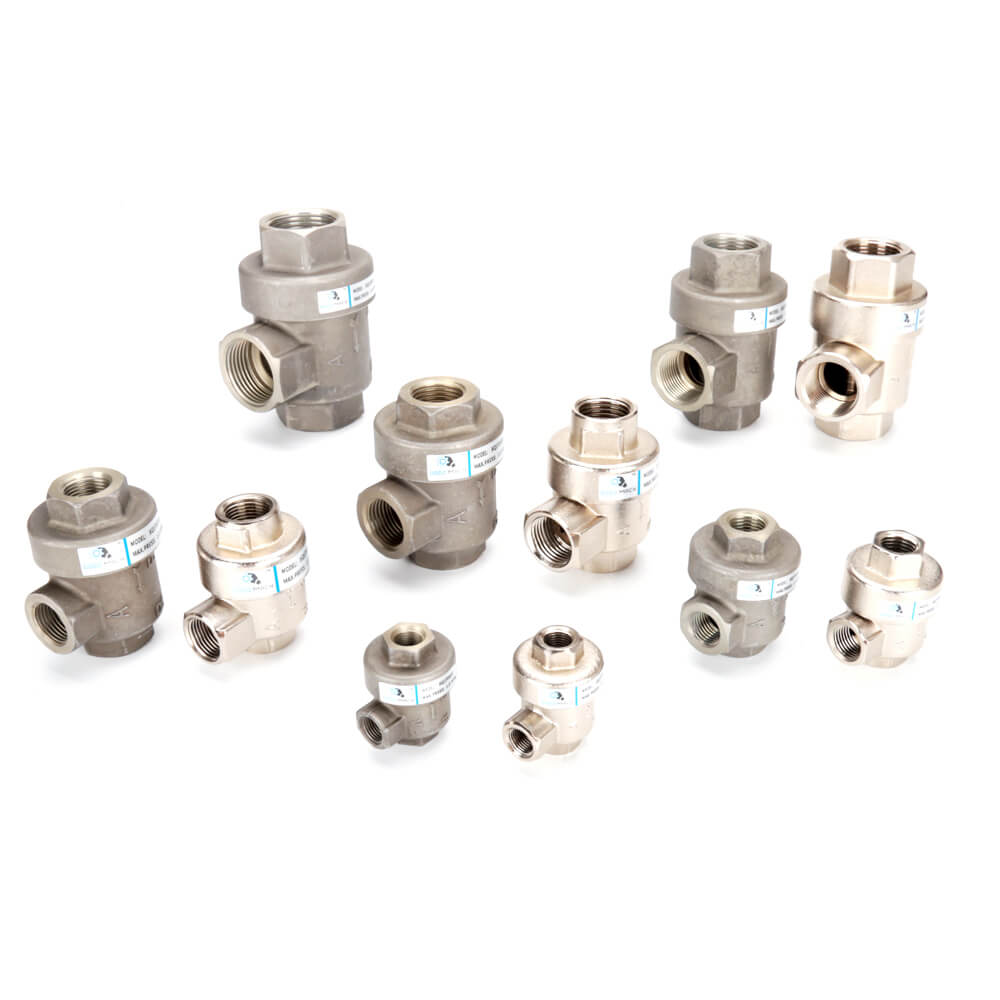

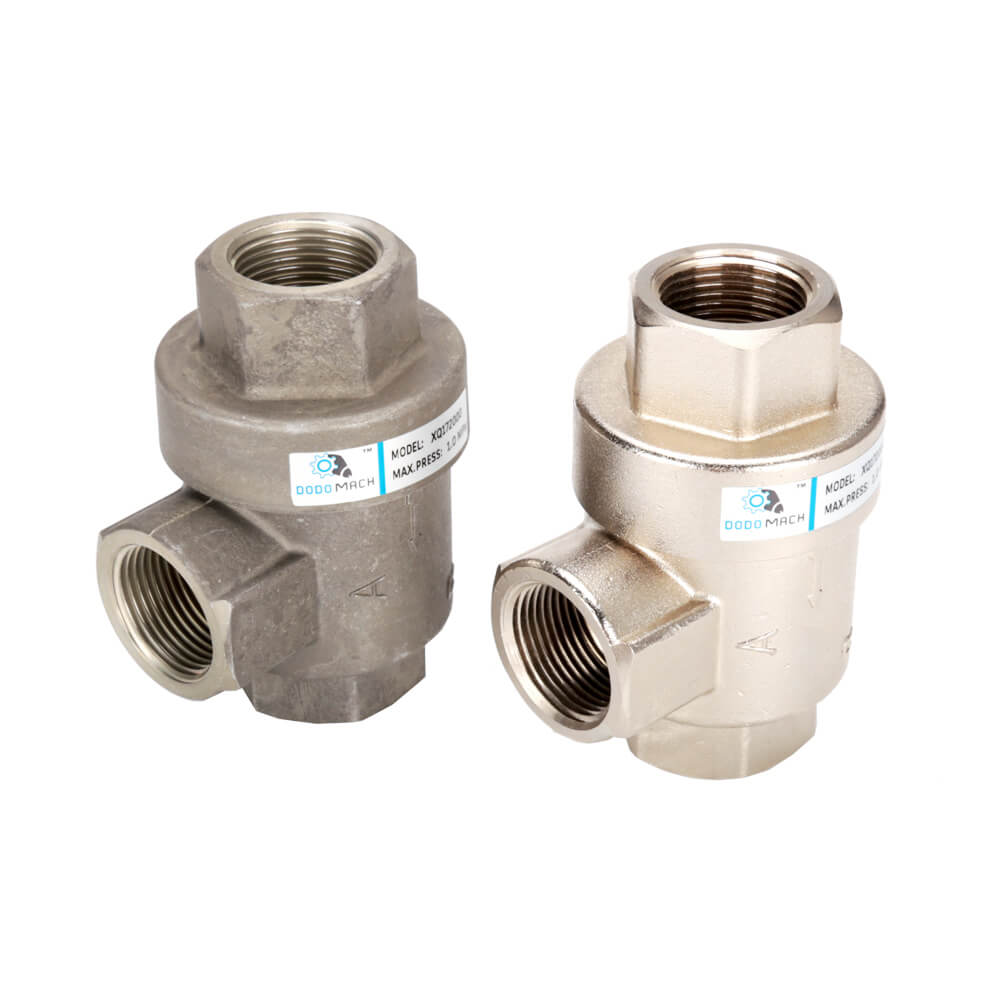

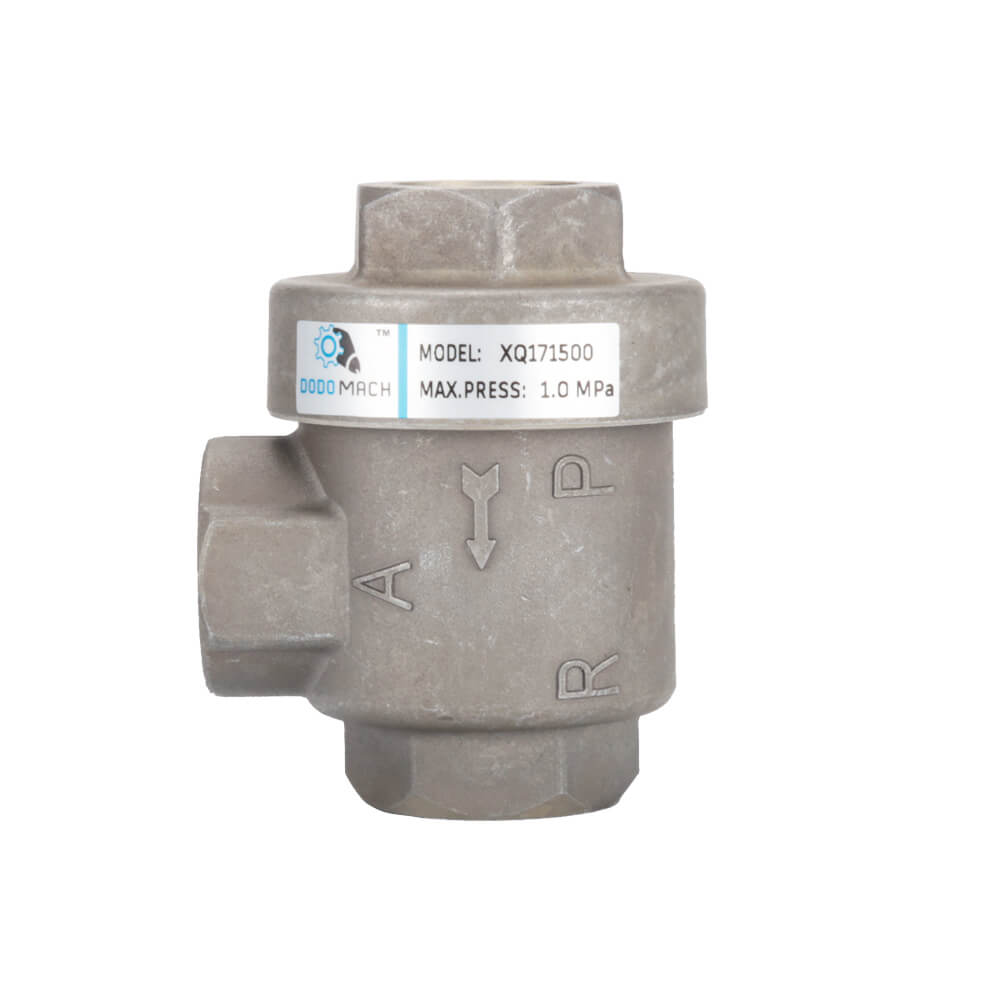

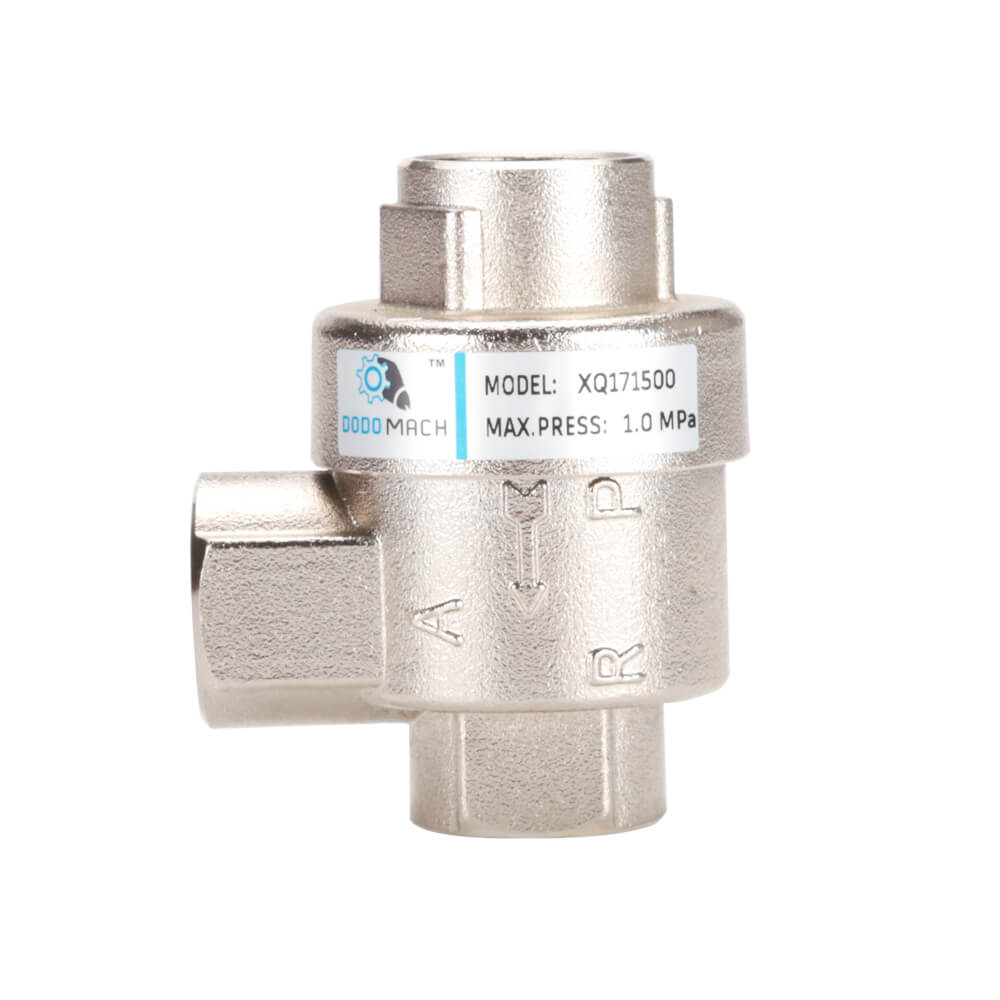

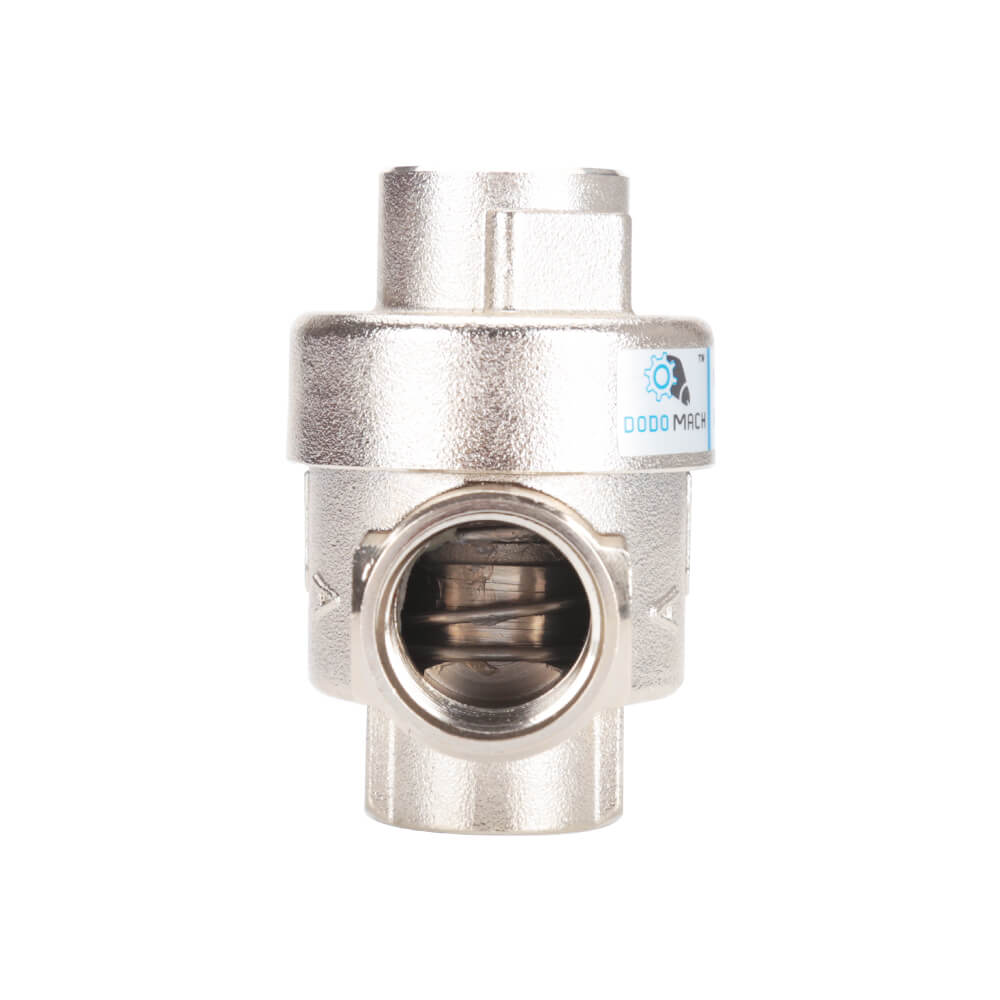

XQ Series
Model: XQ-06~XQ-25
Operating pressure: 0~10 Bar
Pneumatic Valves
Model: XQ-06~XQ-25
Operating pressure: 0~10 Bar
| Model | T | H | L |
| XQ-06 | G1/8“ | 33 | 28 |
| XQ-08 | G1/4“ | 45 | 36 |
| XQ-10 | G3/8“ | 59 | 44 |
| XQ-15 | G1/2“ | 66 | 52 |
| XQ-20 | G3/4“ | 85 | 63 |
| XQ-25 | G1″ | 96 | 72 |
