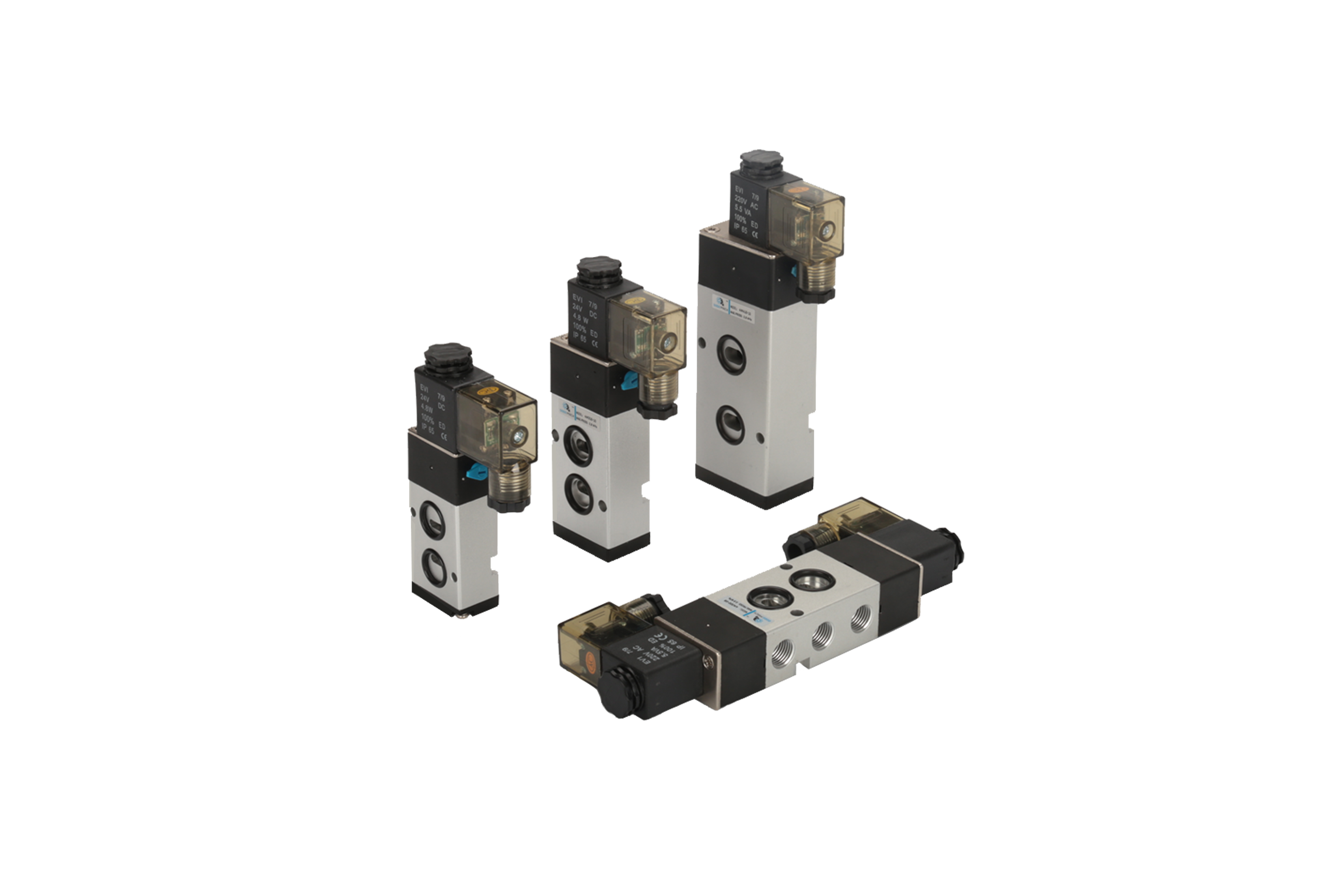

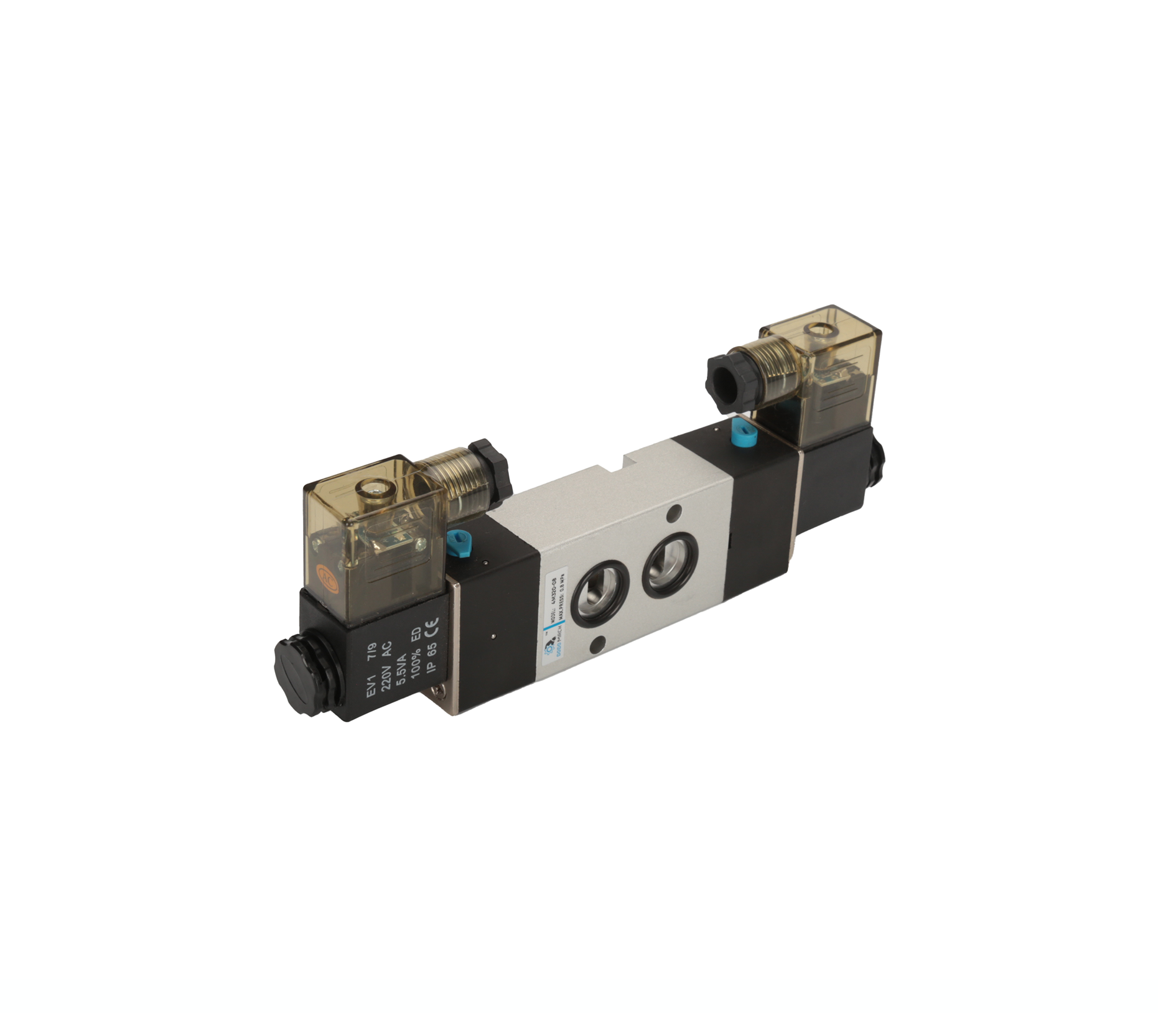

Ordering code
Specification
| Model | 4M110-M5 | 4M110-06 | 4M210-06 | 4M210-08 | 4M310-08 | 4M310-10 |
| 4M120-M5 | 4M120-06 | 4M220-06 | 4M220-08 | 4M320-08 | 4M320-10 | |
| Fluid | Air (to be filtered by 40 μm filter element) | |||||
| Acting | Internal pilot | |||||
| Port size | In=Out=M5 | In=Out=1/8″ | In=Out=1/8″ | In=1/4″ Out=1/8″ |
In=Out=1/4″ | In=3/8″ Out=1/4″ |
| Orifice size | 4M110-06, 4M120-06: 10.2mm² (Cv=0.6) |
4M210-08, 4M220-08: 17.0mm² (Cv=1.0) |
4M310-10, 4M320-10: 28mm² (Cv=1.65) |
|||
| Valve type | 5 port 2 position | |||||
| Operating pressure | 0.15~0.8MPa（21~114psi） | |||||
| Proof pressure | 1.2MPa（175psi） | |||||
| Temperature | -20~70℃ | |||||
| Material of body | Aluminum alloy | |||||
| Lubrication | Not required | |||||
| Max.frequency | 5 cycle/sec | 4 cycle/sec | ||||
| Weight(g) | 4M110:120 4M120:175 | 4M210:220 4M220:320 | 4M310:310 4M320:400 | |||

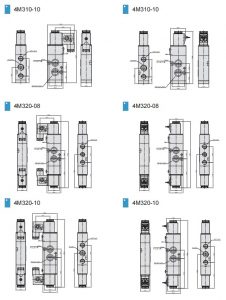

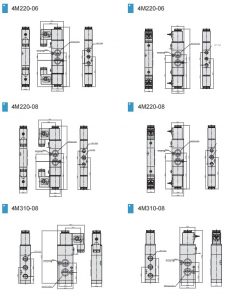

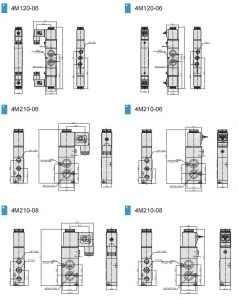

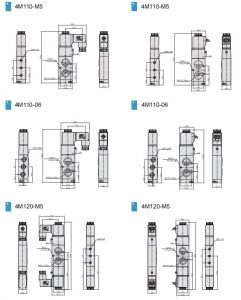

Dimension
