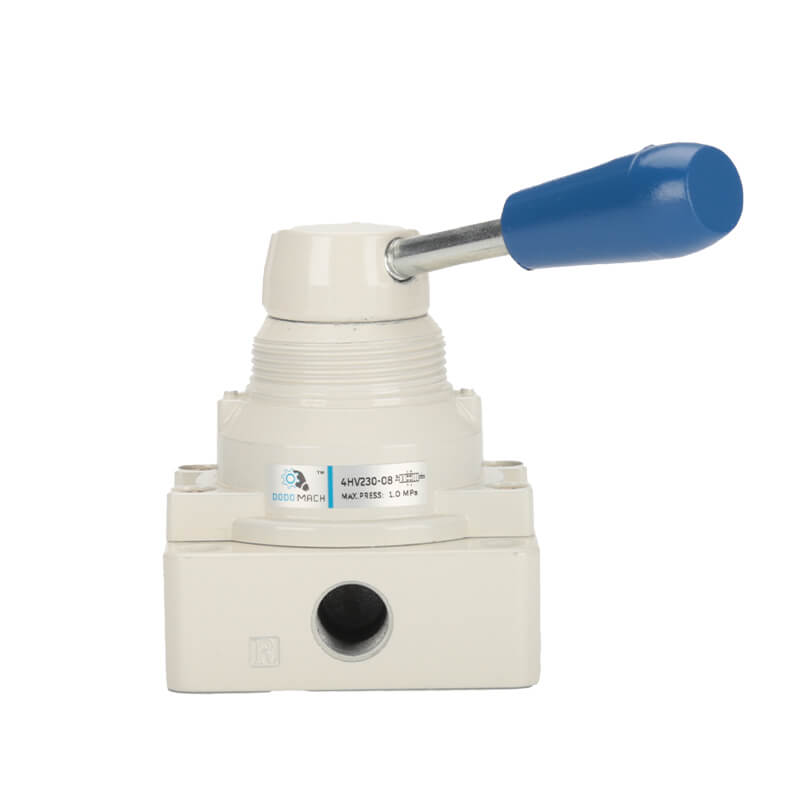

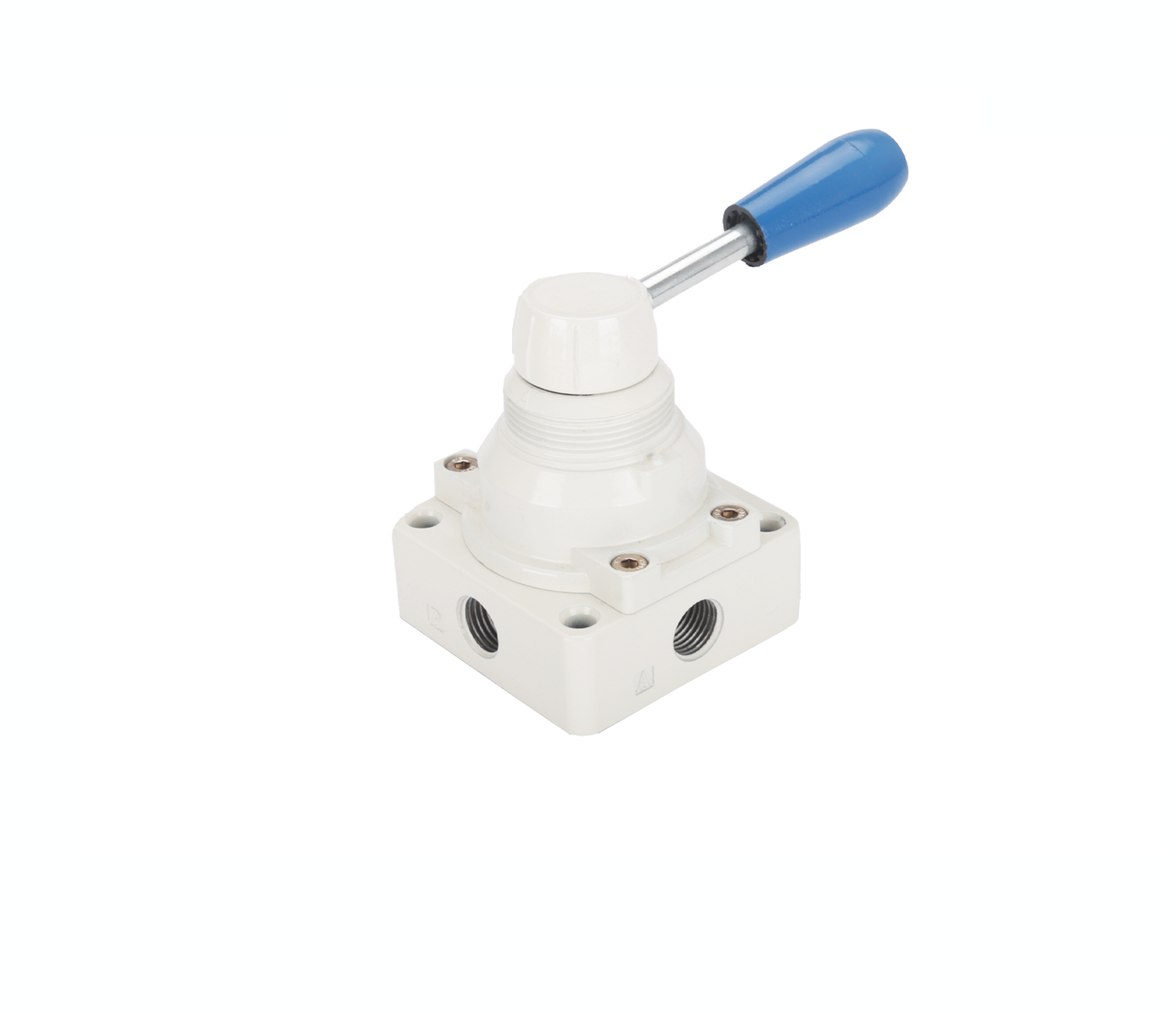

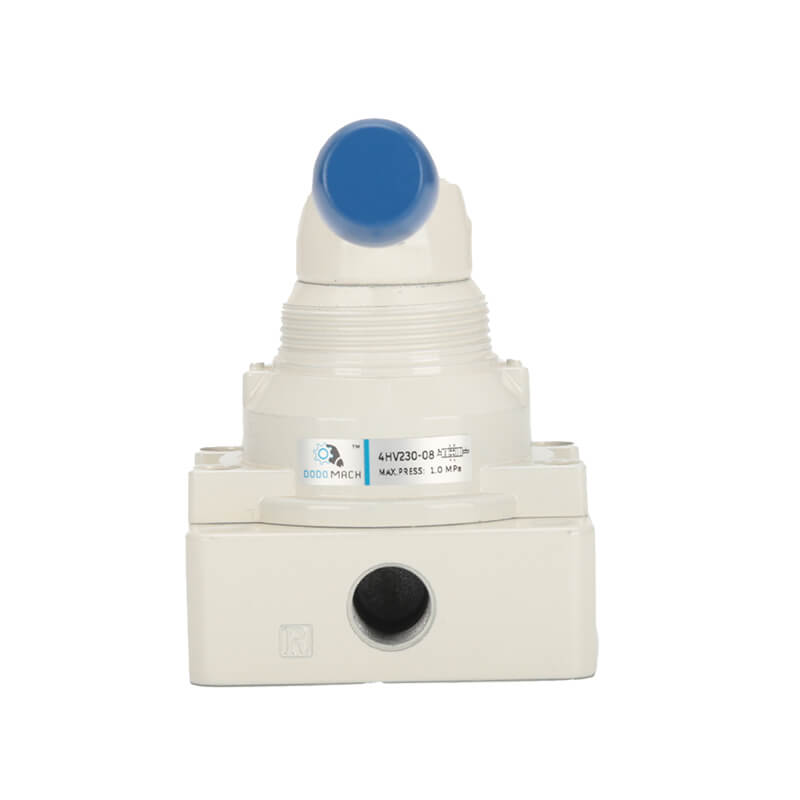

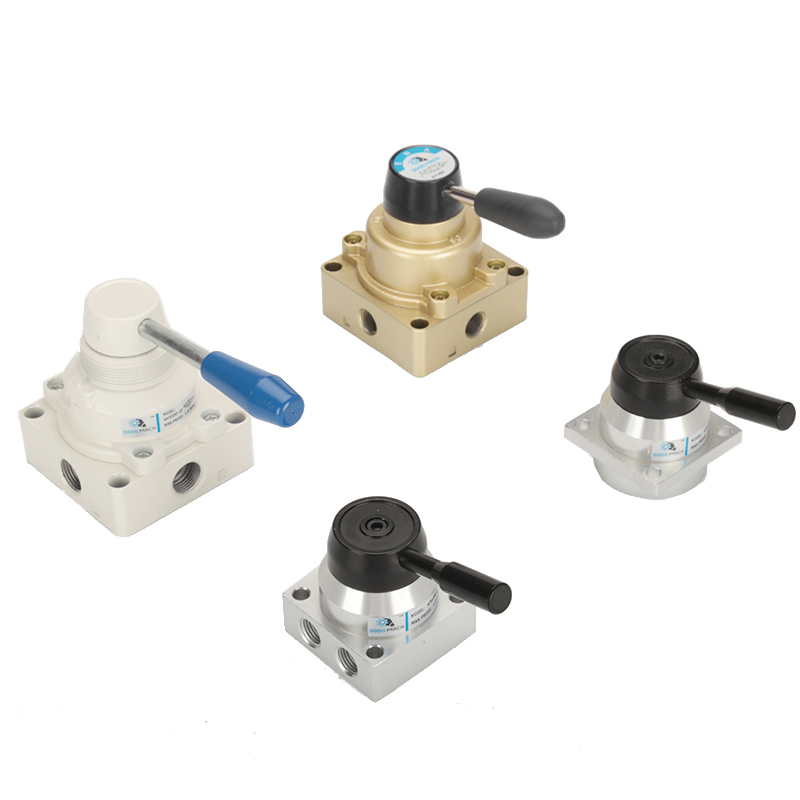

Ordering Code
Specification
| Model | 4HV2¨¨-06(L) | 4HV2¨¨-08(L) | 4HV3¨¨-08(L) | 4HV3¨¨-10(L) | 4HV4¨¨-15(L) | 4HV4¨¨-20(L) |
| Fluid | Air(to be filtered by 40μm filter element) | |||||
| Operating | Manual control direct acting type | |||||
| Port size[Note1] | 1/8“ | 1/4“ | 1/4“ | 3/8“ | 1/2“ | 3/4“ |
| Orifice size | 14.0mm² (Cv=0.78) |
16.0mm² (Cv=0.89) |
30.0mm² (Cv=1.67) |
33.0mm² (Cv=1.83) |
88.0mm² (Cv=4.89) |
95.0mm² (Cv=5.27) |
| Valve type | 4/2 Way、4/3 Way | |||||
| Lubrication | Not required | |||||
| Pressure range | 0~1.0 MPa (0~145psi) | |||||
| Proof pressure | 1.5 MPa (215psi) | |||||
| Temperature | -20~70℃ | |||||
| Operating angle | 90°(4/3 Way：45°) | |||||

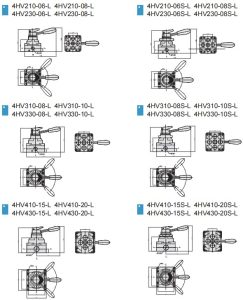

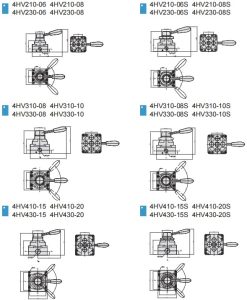

Dimension
