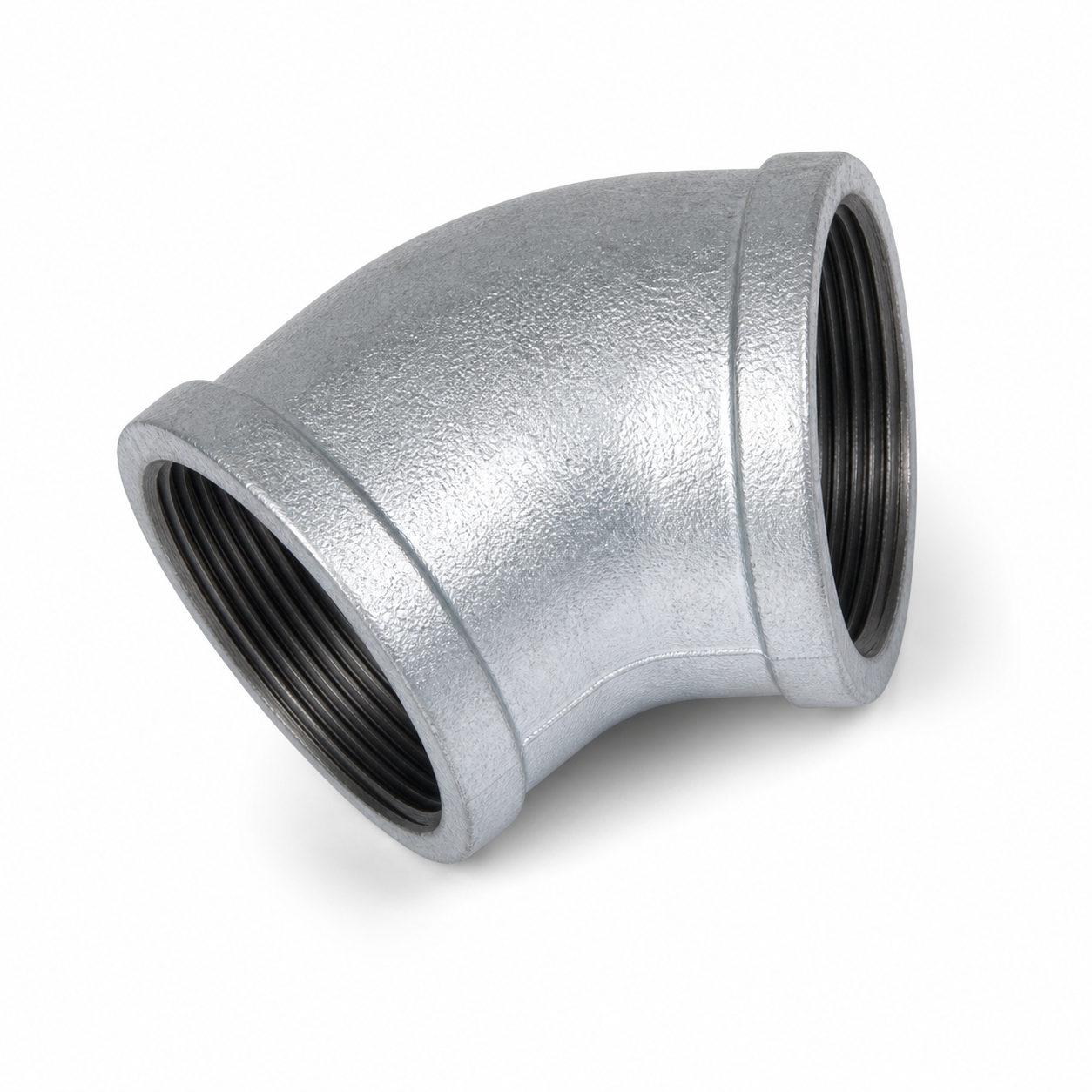

Malleable Iron 45 Degree Elbow Fig.120
Galvanized malleable iron 45 degree elbow for threaded pipe direction changes. Fig.120 is supplied with female threaded ends and is suitable for pipe fitting installations requiring a 45 degree turn.
Features
- 45 degree elbow body for threaded pipe direction changes.
- Female threaded ends with galvanized malleable iron construction.
- Typed dimensional and packing data based on the Jianzhi catalog table.

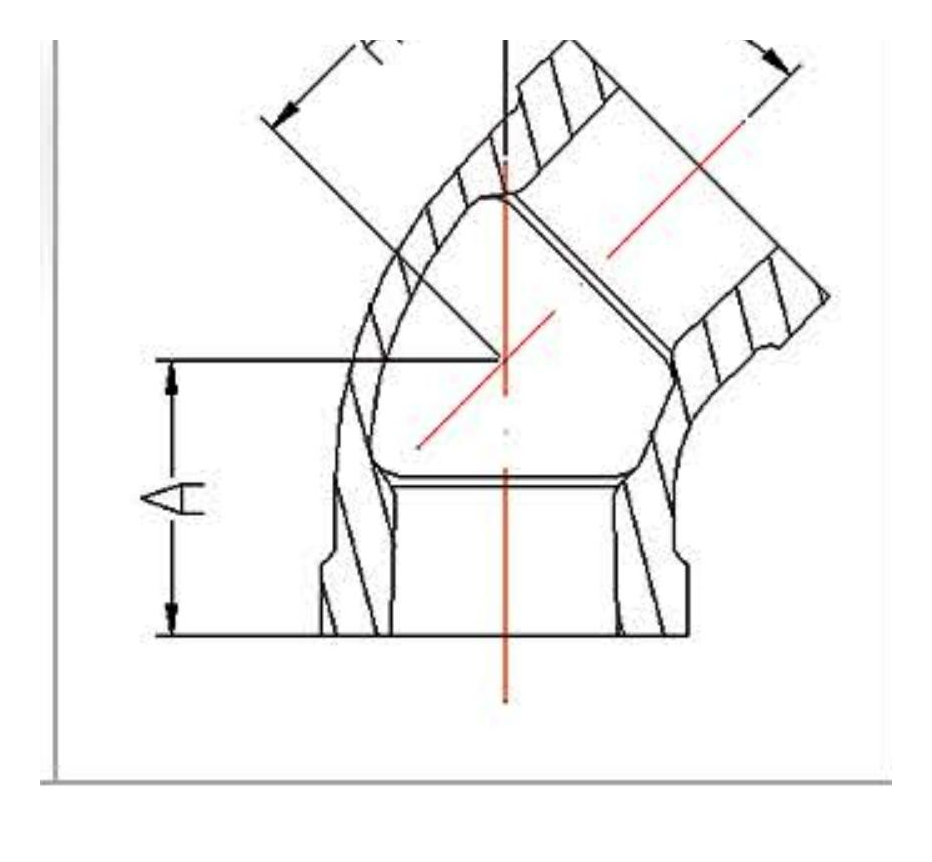

Dimensions and Packing
| Code | NPS | DN | A (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|
| JZGAL12001 | 1/4 in. | 8 | 18 | 46.06 | 47 | 500 |
| JZGAL12002 | 3/8 in. | 10 | 20 | 56.84 | 58 | 500 |
| JZGAL12003 | 1/2 in. | 15 | 22 | 91.14 | 93 | 400 |
| JZGAL12004 | 3/4 in. | 20 | 25 | 131.32 | 134 | 240 |
| JZGAL12005 | 1 in. | 25 | 28 | 196.98 | 201 | 140 |
| JZGAL12006 | 1-1/4 in. | 32 | 33 | 315.56 | 322 | 96 |
| JZGAL12007 | 1-1/2 in. | 40 | 36 | 392 | 400 | 72 |
| JZGAL12008 | 2 in. | 50 | 43 | 646.8 | 660 | 36 |
| JZGAL12009 | 2-1/2 in. | 65 | 48.5 | 933.94 | 953 | 20 |
| JZGAL12010 | 3 in. | 80 | 53.5 | 1274 | 1300 | 12 |
| JZGAL12011 | 4 in. | 100 | 64.5 | 2164.82 | 2209 | 6 |
| JZGAL12012 | 6 in. | 150 | 129 | 4738.3 | 4835 | 4 |
Standard Specification
Standard Specifications
- Material: EN1562 or ISO5922.
- Design and dimensions: EN10242 or ISO49.
- Threads: EN10226 or ISO7-1.
- Tensile strength: 350 MPa.
- Elongation: 10%.
- Zinc coating: 70 um.
- Working pressure: 363 PSI.
- Available size range: 1/8 in. to 6 in.
- Surface treatment: hot-dip galvanized, electrogalvanization, black.
Product Details
| Product Type | 45 degree elbow for threaded pipe direction changes |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
