Malleable Iron 90 Degree Female Long Bend Fig.2

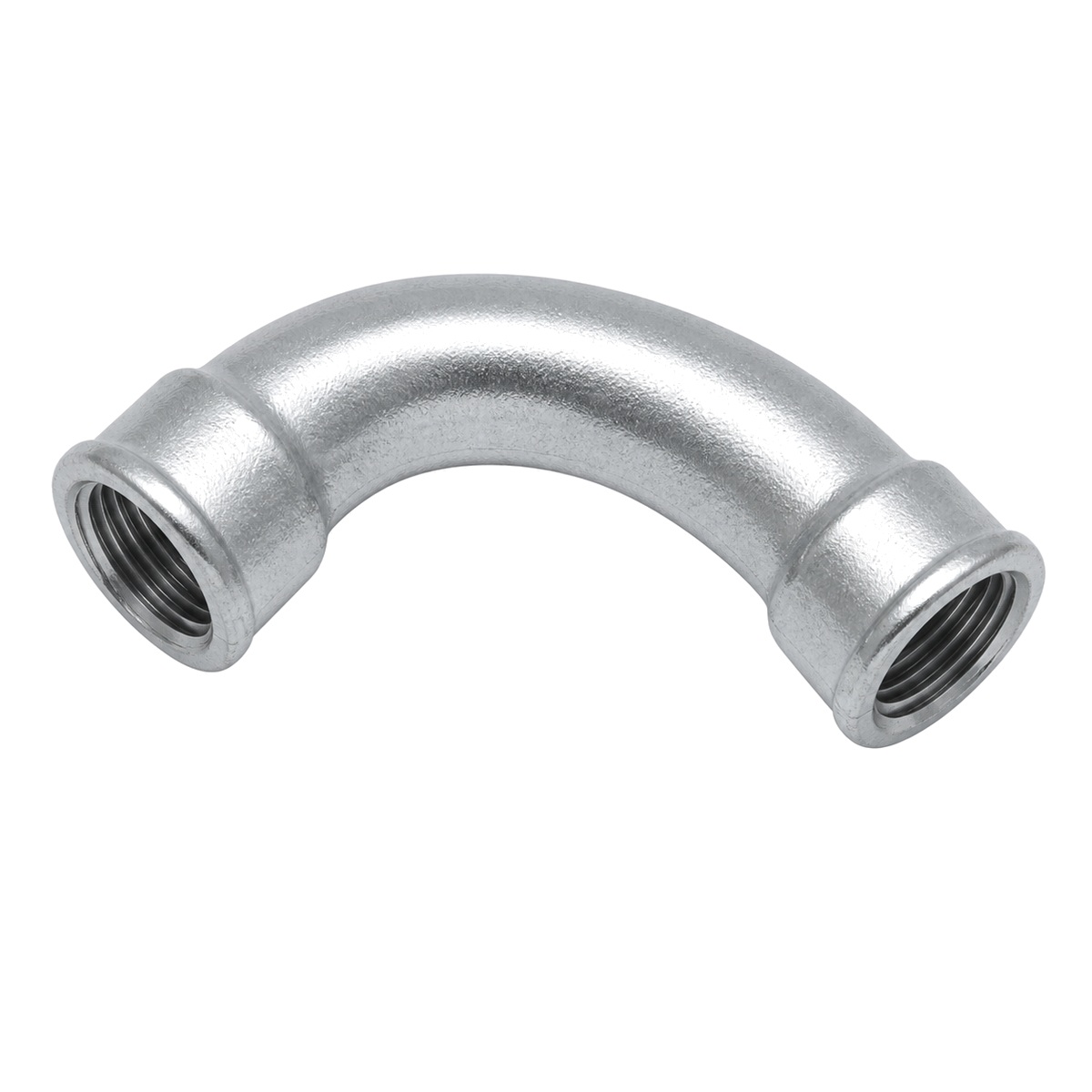

Galvanized and black malleable iron 90 degree female long bend pipe fitting, Fig.2.
Standard Specifications
- Material: EN1562 or ISO5922.
- Design and dimensions: EN10242 or ISO49.
- Threads: EN10226 or ISO7-1.
- Tensile strength: 350 MPa.
- Elongation: 10%.
- Zinc coating: 70 um.
- Working pressure: 363 PSI.
- Available size range: 1/8 in. to 6 in.
- Surface treatment: hot-dip galvanized, electrogalvanization, black.
Dimensions and Packing

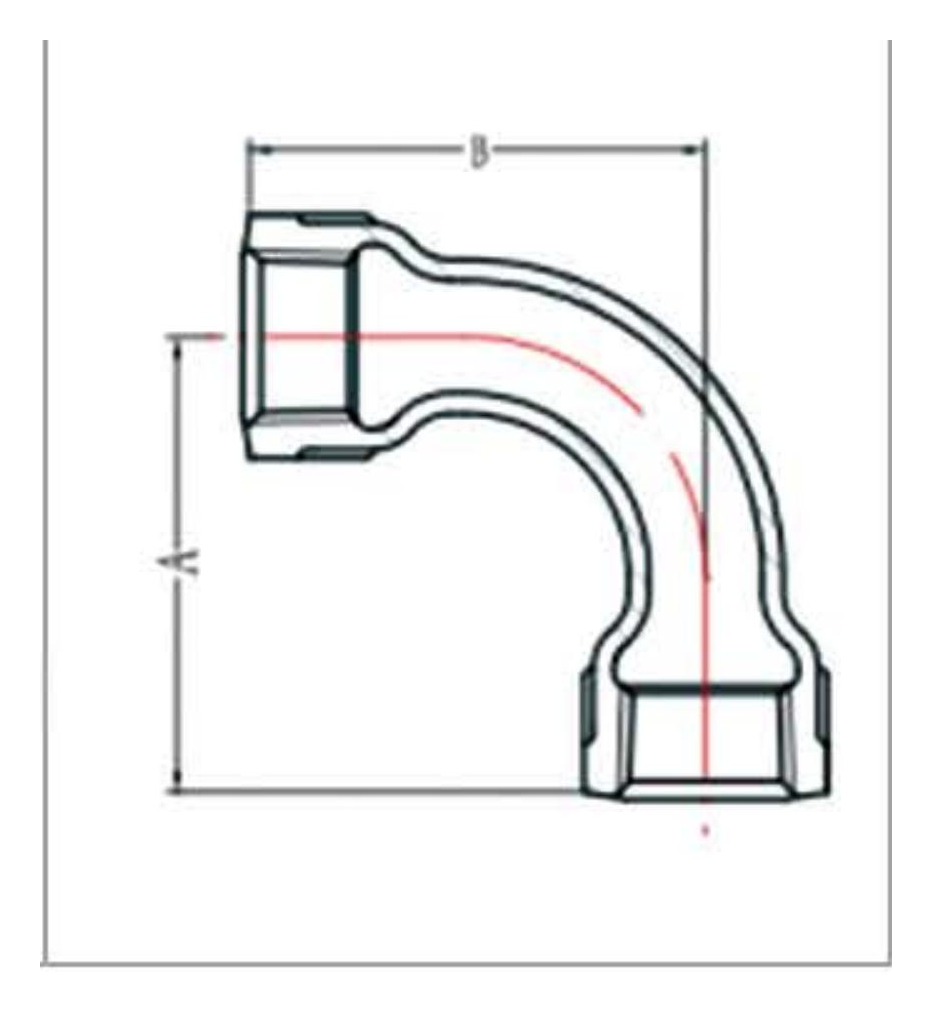

| Code | NPS | DN | A (mm) | B (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing (pcs/ctn) |
|---|---|---|---|---|---|---|---|
| JZGAL201 | 3/8 | 10 | 48 | 42 | 87.22 | 89 | 400 |
| JZGAL202 | 1/2 | 15 | 55 | 48 | 142.1 | 145 | 220 |
| JZGAL203 | 3/4 | 20 | 69 | 60 | 223.44 | 228 | 120 |
| JZGAL204 | 1 | 25 | 85 | 75 | 372.4 | 380 | 70 |
| JZGAL205 | 1-1/4 | 32 | 105 | 95 | 607.6 | 620 | 40 |
| JZGAL206 | 1-1/2 | 40 | 116 | 105 | 807.52 | 824 | 20 |
| JZGAL207 | 2 | 50 | 140 | 131 | 1268.12 | 1294 | 12 |
| JZGAL208 | 2-1/2 | 65 | 176 | 165 | 2243.22 | 2289 | 8 |
| JZGAL209 | 3 | 80 | 205 | 190 | 3234 | 3300 | 6 |
| JZGAL210 | 4 | 100 | 260 | 245 | 6056.4 | 6180 | 2 |
Product Details
| Product Type | 90 degree female long bend for smooth direction changes in threaded pipe systems |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, length, thread and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
