Malleable Iron 45 Degree Female Long Bend Fig.41

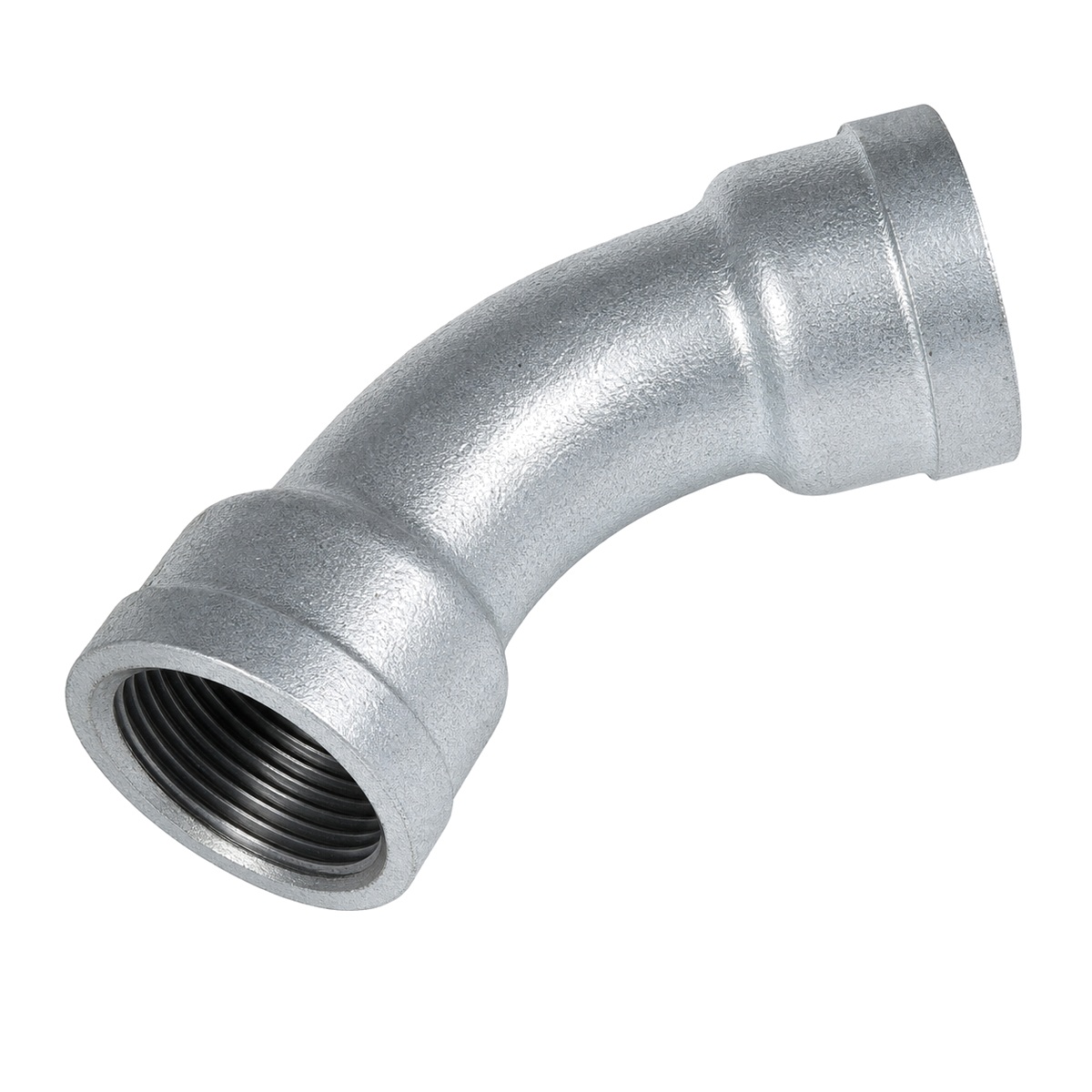

Galvanized and black malleable iron 45 degree female long bend pipe fitting, Fig.41.
Standard Specifications
- Material: EN1562 or ISO5922.
- Design and dimensions: EN10242 or ISO49.
- Threads: EN10226 or ISO7-1.
- Tensile strength: 350 MPa.
- Elongation: 10%.
- Zinc coating: 70 um.
- Working pressure: 363 PSI.
- Available size range: 1/8 in. to 6 in.
- Surface treatment: hot-dip galvanized, electrogalvanization, black.

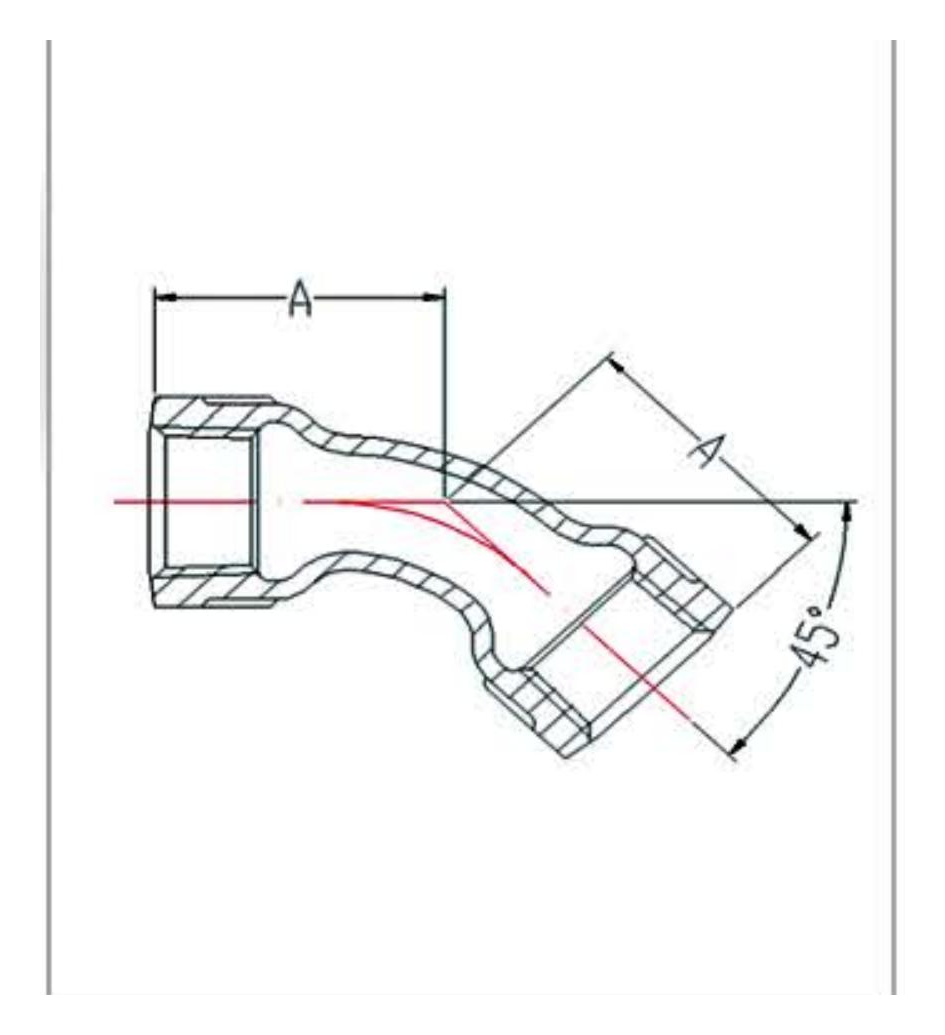

Dimensions and Packing
| Code | NPS | DN | A (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing (pcs/ctn) |
|---|---|---|---|---|---|---|
| JZGAL4101 | 1/2 | 15 | 36 | 119.56 | 122 | 180 |
| JZGAL4102 | 3/4 | 20 | 43 | 180.32 | 184 | 160 |
| JZGAL4103 | 1 | 25 | 51 | 286.16 | 292 | 80 |
| JZGAL4104 | 1-1/4 | 32 | 64 | 461.58 | 471 | 50 |
| JZGAL4105 | 1-1/2 | 40 | 68 | 0 | 24 | |
| JZGAL4106 | 2 | 50 | 81 | 0 | 12 | |
| JZGAL4107 | 2-1/2 | 65 | 99 | 0 | 8 | |
| JZGAL4108 | 3 | 80 | 113 | 0 | 6 | |
| JZGAL4109 | 4 | 100 | 142 | 0 | 2 |
Product Details
| Product Type | 45 degree female long bend for direction changes in threaded pipe systems |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, length, thread and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
