Malleable Iron Union Elbow Conical Seat Fig.96

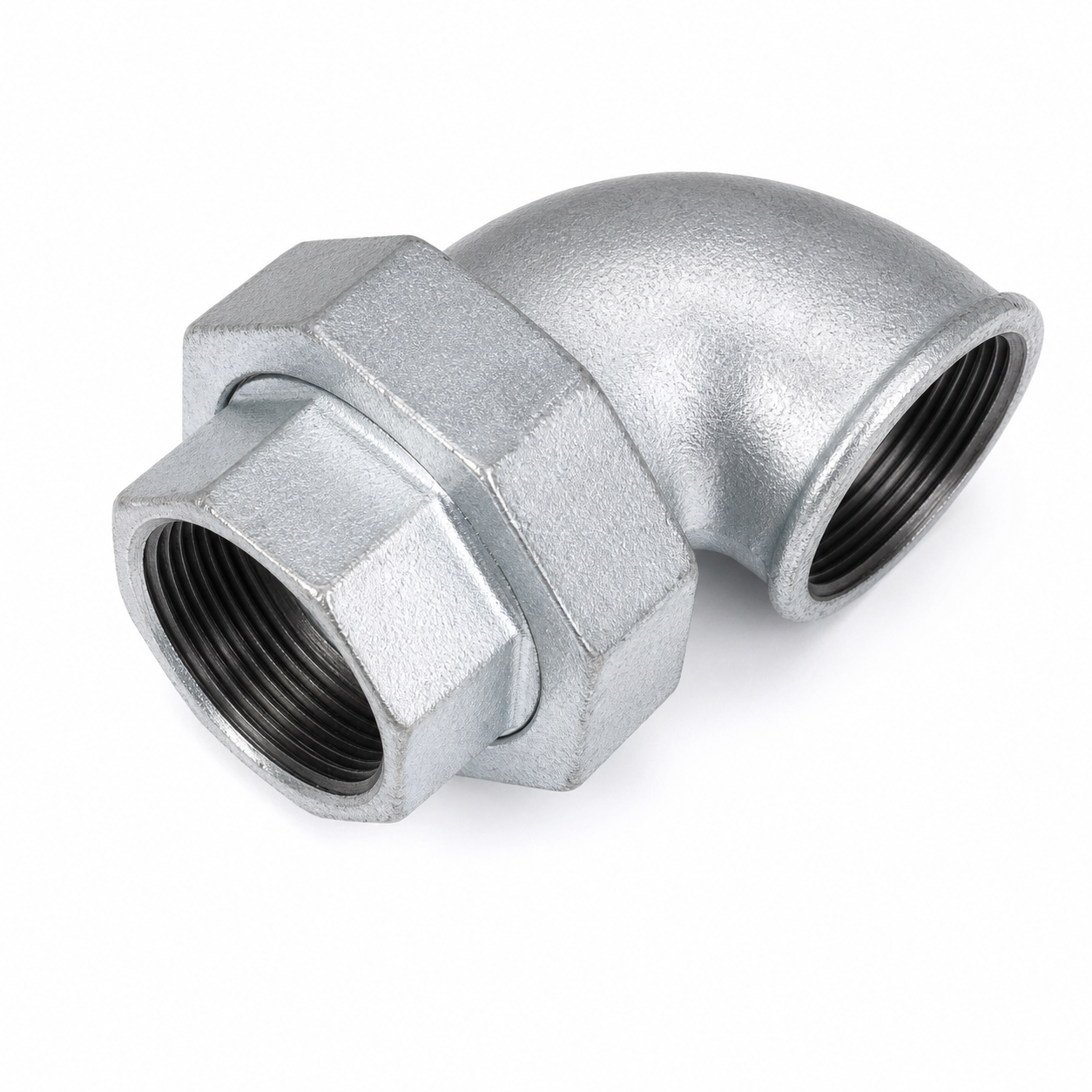

Fig.96 is a galvanized malleable iron union elbow with a conical seat. It is designed for threaded pipe systems that require a serviceable right-angle union connection.
Key Features
- Union elbow with conical seat design.
- Galvanized malleable iron body with threaded connections.
- Union nut supports convenient installation and disassembly.
- Available in sizes from 1/2 in. to 2 in.
Standard Specifications
- Material: EN1562 or ISO5922.
- Design and dimensions: EN10242 or ISO49.
- Threads: EN10226 or ISO7-1.
- Tensile strength: 350 MPa.
- Elongation: 10%.
- Zinc coating: 70 um.
- Working pressure: 363 PSI.
- Available size range: 1/8 in. to 6 in.
- Surface treatment: hot-dip galvanized, electrogalvanization, black.

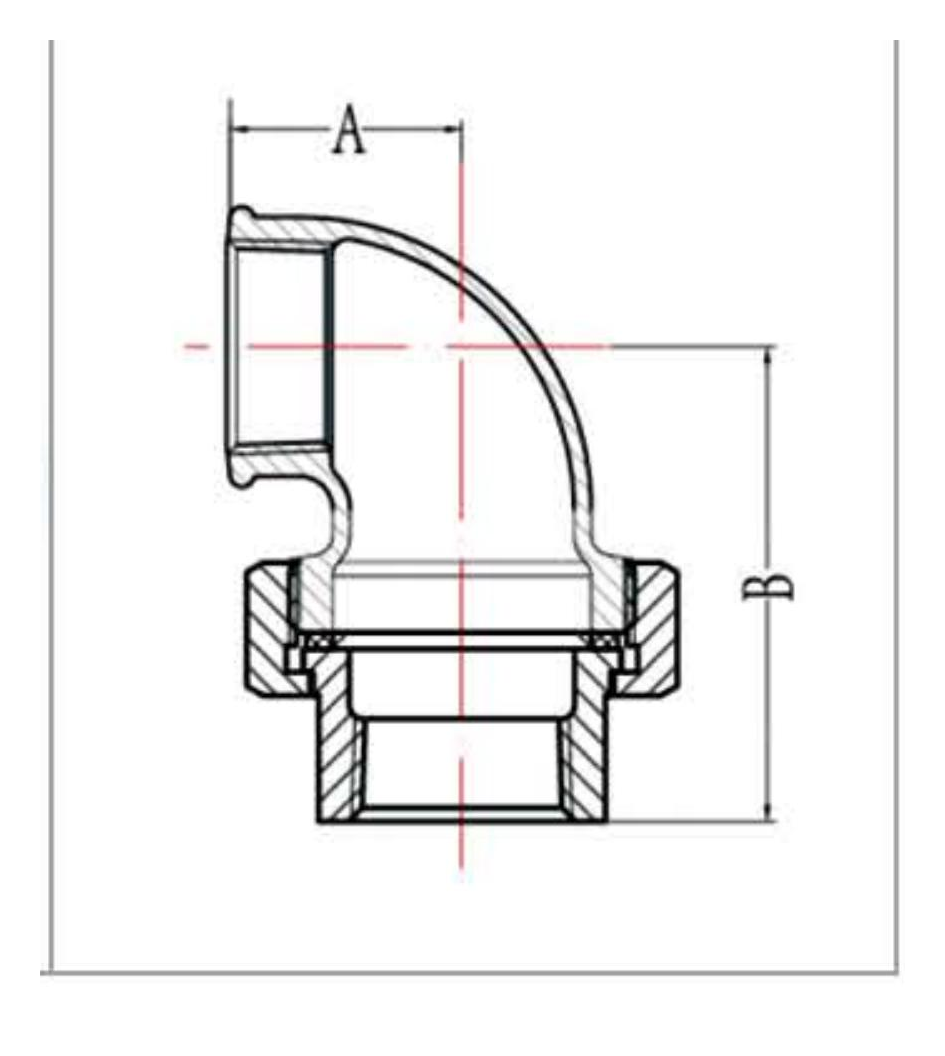

Dimensions and Packing
| Code | NPS | DN | A (mm) | B (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|---|
| JZGAL9601 | 1/2 in. | 15 | 27 | 49.5 | 217.56 | 222 | 60 |
| JZGAL9602 | 3/4 in. | 20 | 32 | 57 | 313.6 | 320 | 40 |
| JZGAL9603 | 1 in. | 25 | 37 | 64.5 | 442.96 | 452 | 30 |
| JZGAL9604 | 1-1/4 in. | 32 | 44.5 | 74.5 | 797.72 | 814 | 20 |
| JZGAL9605 | 1-1/2 in. | 40 | 48.5 | 82 | 918.26 | 937 | 18 |
| JZGAL9606 | 2 in. | 50 | 57 | 94 | 1399.44 | 1428 | 10 |
Product Details
| Product Type | Union elbow with conical seat for detachable directional pipe connection |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
