Malleable Iron 90 Degree M&F Elbow Fig.92

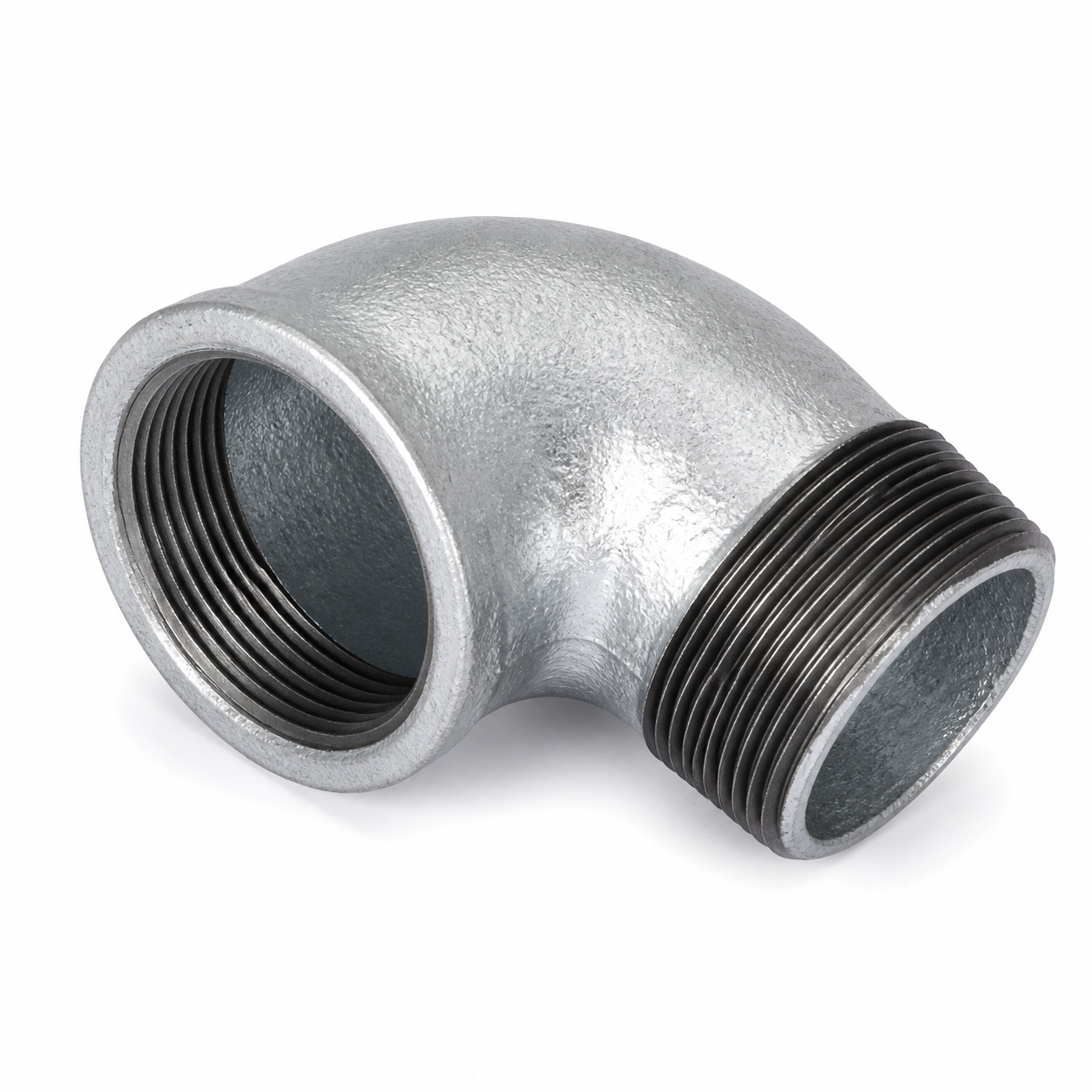

Fig.92 is a galvanized malleable iron 90 degree male and female elbow. It provides a compact right-angle turn with one male threaded end and one female threaded socket.
Key Features
- 90 degree male and female elbow configuration.
- One female threaded opening and one male threaded end.
- Galvanized malleable iron body for threaded pipe systems.
- Available in sizes from 1/4 in. to 4 in.
Standard Specifications
- Material: EN1562 or ISO5922.
- Design and dimensions: EN10242 or ISO49.
- Threads: EN10226 or ISO7-1.
- Tensile strength: 350 MPa.
- Elongation: 10%.
- Zinc coating: 70 um.
- Working pressure: 363 PSI.
- Available size range: 1/8 in. to 6 in.
- Surface treatment: hot-dip galvanized, electrogalvanization, black.

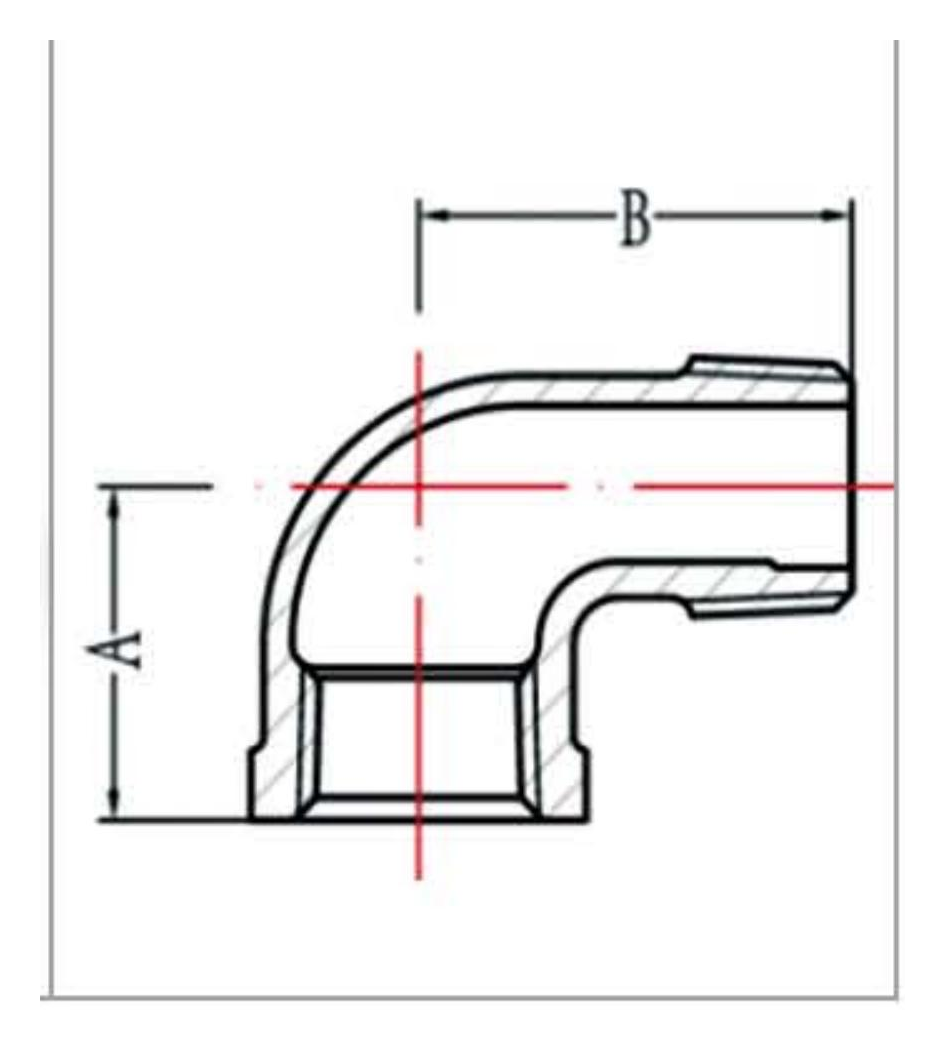

Dimensions and Packing
| Code | NPS | DN | A (mm) | B (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|---|
| JZGAL9201 | 1/4 in. | 8 | 20 | 28 | 37.24 | 38 | 600 |
| JZGAL9202 | 3/8 in. | 10 | 25 | 33 | 54.88 | 56 | 500 |
| JZGAL9203 | 1/2 in. | 15 | 28 | 38 | 87.22 | 89 | 300 |
| JZGAL9204 | 3/4 in. | 20 | 33 | 44 | 132.3 | 135 | 180 |
| JZGAL9205 | 1 in. | 25 | 38 | 52 | 204.82 | 209 | 104 |
| JZGAL9206 | 1-1/4 in. | 32 | 45 | 60 | 339.08 | 346 | 60 |
| JZGAL9207 | 1-1/2 in. | 40 | 50 | 65 | 434.14 | 443 | 52 |
| JZGAL9208 | 2 in. | 50 | 58 | 74 | 701.68 | 716 | 26 |
| JZGAL9209 | 2-1/2 in. | 65 | 69 | 90 | 1125.04 | 1148 | 12 |
| JZGAL9210 | 3 in. | 80 | 77.5 | 100 | 1547.42 | 1579 | 10 |
| JZGAL9211 | 4 in. | 100 | 96.5 | 120 | 2703.82 | 2759 | 6 |
Product Details
| Product Type | 90 degree male and female elbow for threaded pipe direction changes |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
