Malleable Iron Reducing Part Thread Socket Fig.240

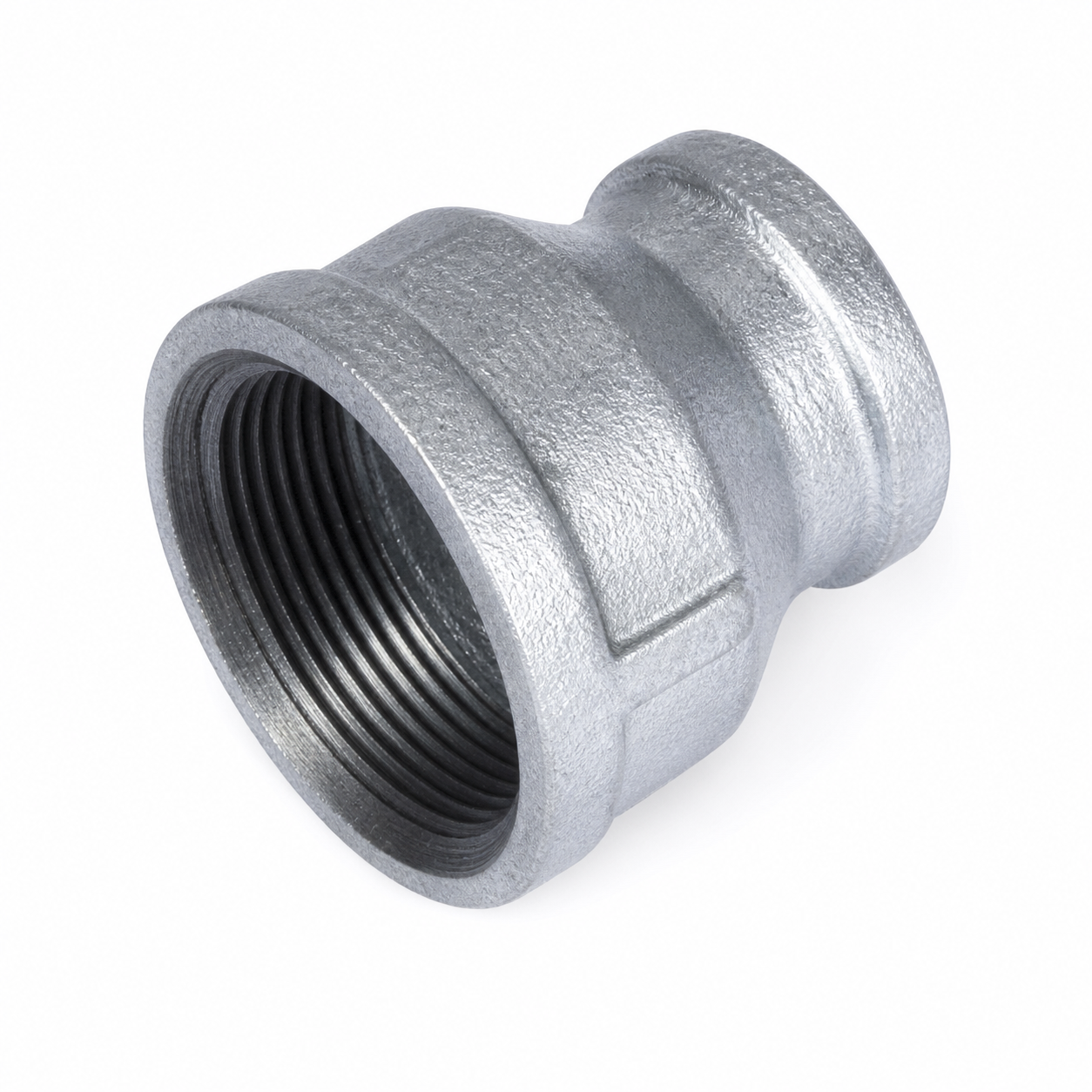

Galvanized malleable iron reducing part thread socket for threaded pipe fitting systems. The larger end has internal threads and the smaller end is designed for reduced connection sizes.
Product Features
- Material: malleable iron
- Finish: black or galvanized
- Connection: female threaded reducing socket
- Application: water, gas, fire protection, plumbing, and general piping systems
- Catalog reference: Fig.240

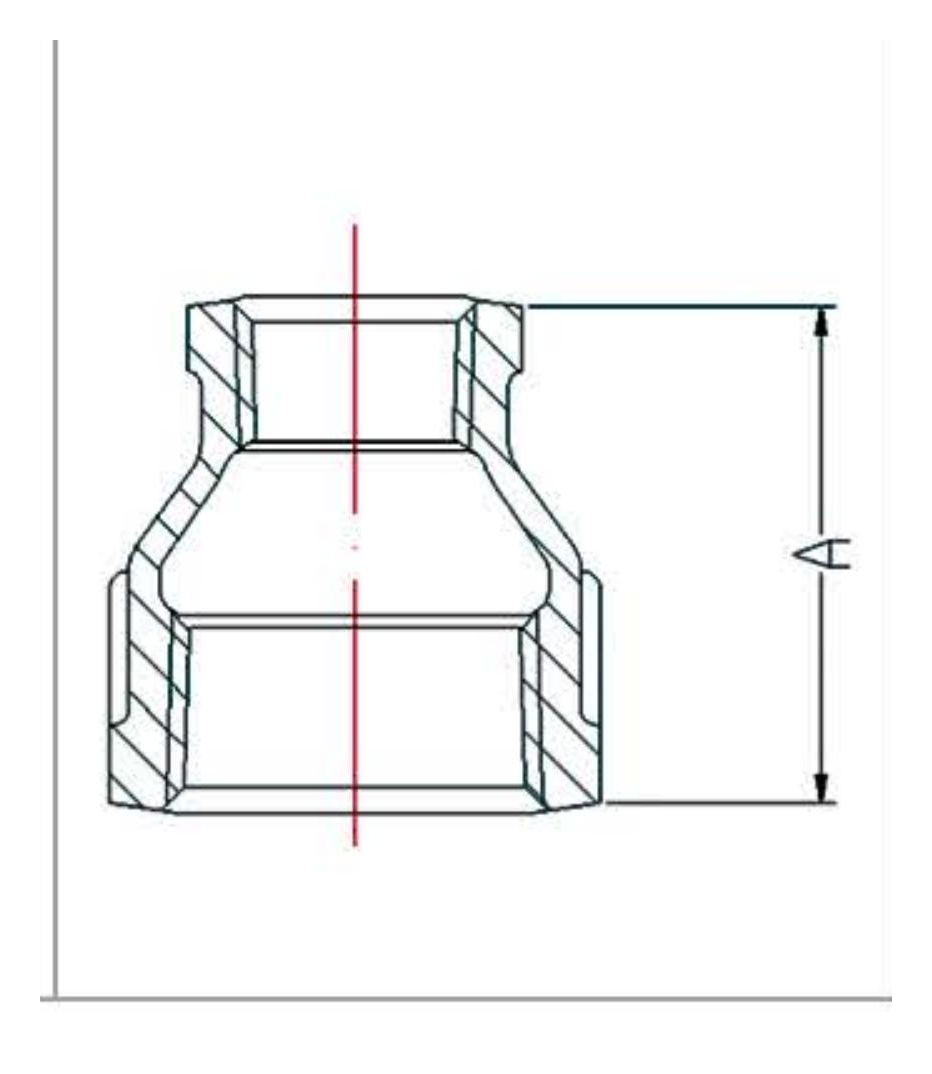

Dimensions and Packing
| Code | NPS | DN | A (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|
| JZGAL24001 | 3/8 in. x 1/4 in. | 10 x 8 | 29 | 42 | 43 | 500 |
| JZGAL24002 | 1/2 in. x 1/4 in. | 15 x 8 | 35 | 66 | 67 | 500 |
| JZGAL24003 | 1/2 in. x 3/8 in. | 15 x 10 | 36 | 69 | 70 | 500 |
| JZGAL24004 | 3/4 in. x 1/4 in. | 20 x 8 | 38 | 86 | 88 | 360 |
| JZGAL24005 | 3/4 in. x 3/8 in. | 20 x 10 | 38 | 91 | 93 | 360 |
| JZGAL24006 | 3/4 in. x 1/2 in. | 20 x 15 | 38 | 105 | 107 | 360 |
| JZGAL24007 | 1 in. x 1/4 in. | 25 x 8 | 44 | 132 | 135 | 200 |
| JZGAL24008 | 1 in. x 3/8 in. | 25 x 10 | 44 | 128 | 131 | 200 |
| JZGAL24009 | 1 in. x 1/2 in. | 25 x 15 | 44 | 142 | 145 | 200 |
| JZGAL24010 | 1 in. x 3/4 in. | 25 x 20 | 44 | 150 | 153 | 200 |
| JZGAL24011 | 1-1/4 in. x 1/2 in. | 32 x 15 | 49 | 203 | 207 | 144 |
| JZGAL24012 | 1-1/4 in. x 3/4 in. | 32 x 20 | 49 | 214 | 218 | 144 |
| JZGAL24013 | 1-1/4 in. x 1 in. | 32 x 25 | 49 | 225 | 230 | 120 |
| JZGAL24014 | 1-1/2 in. x 1/2 in. | 40 x 15 | 53 | 247 | 252 | 140 |
| JZGAL24015 | 1-1/2 in. x 3/4 in. | 40 x 20 | 53 | 254 | 259 | 140 |
| JZGAL24016 | 1-1/2 in. x 1 in. | 40 x 25 | 53 | 277 | 283 | 120 |
| JZGAL24017 | 1-1/2 in. x 1-1/4 in. | 40 x 32 | 53 | 312 | 318 | 100 |
| JZGAL24018 | 2 in. x 1/2 in. | 50 x 15 | 63 | 392 | 400 | 80 |
| JZGAL24019 | 2 in. x 3/4 in. | 50 x 20 | 63 | 406 | 414 | 80 |
| JZGAL24020 | 2 in. x 1 in. | 50 x 25 | 63 | 414 | 422 | 72 |
| JZGAL24021 | 2 in. x 1-1/4 in. | 50 x 32 | 63 | 435 | 444 | 72 |
| JZGAL24022 | 2 in. x 1-1/2 in. | 50 x 40 | 63 | 475 | 485 | 48 |
| JZGAL24023 | 2-1/2 in. x 1/2 in. | 65 x 15 | 72 | 60 | 580 | 60 |
| JZGAL24024 | 2-1/2 in. x 3/4 in. | 65 x 20 | 72 | 60 | 590 | 60 |
| JZGAL24025 | 2-1/2 in. x 1 in. | 65 x 25 | 72 | 60 | 606 | 60 |
| JZGAL24026 | 2-1/2 in. x 1-1/4 in. | 65 x 32 | 72 | 60 | 627 | 60 |
| JZGAL24027 | 2-1/2 in. x 1-1/2 in. | 65 x 40 | 72 | 60 | 647 | 60 |
| JZGAL24028 | 2-1/2 in. x 2 in. | 65 x 50 | 72 | 40 | 728 | 40 |
| JZGAL24029 | 3 in. x 1/2 in. | 80 x 15 | 71 | 40 | 713 | 40 |
| JZGAL24030 | 3 in. x 3/4 in. | 80 x 20 | 71 | 40 | 750 | 40 |
| JZGAL24031 | 3 in. x 1 in. | 80 x 25 | 71 | 40 | 762 | 40 |
| JZGAL24032 | 3 in. x 1-1/4 in. | 80 x 32 | 71 | 40 | 780 | 40 |
| JZGAL24033 | 3 in. x 1-1/2 in. | 80 x 40 | 71 | 40 | 801 | 40 |
| JZGAL24034 | 3 in. x 2 in. | 80 x 50 | 71 | 36 | 856 | 36 |
| JZGAL24035 | 3 in. x 2-1/2 in. | 80 x 65 | 71 | 24 | 878 | 24 |
| JZGAL24036 | 4 in. x 1/2 in. | 100 x 15 | 84 | 20 | 1162 | 20 |
| JZGAL24037 | 4 in. x 3/4 in. | 100 x 20 | 84 | 20 | 1248 | 20 |
| JZGAL24038 | 4 in. x 1 in. | 100 x 25 | 84 | 20 | 1258 | 20 |
| JZGAL24039 | 4 in. x 1-1/4 in. | 100 x 32 | 84 | 20 | 1305 | 20 |
| JZGAL24040 | 4 in. x 1-1/2 in. | 100 x 40 | 84 | 20 | 1320 | 20 |
| JZGAL24041 | 4 in. x 2 in. | 100 x 50 | 84 | 16 | 1353 | 16 |
| JZGAL24042 | 4 in. x 2-1/2 in. | 100 x 65 | 84 | 14 | 1406 | 14 |
| JZGAL24043 | 4 in. x 3 in. | 100 x 80 | 84 | 12 | 1467 | 12 |
Product Details
| Product Type | Reducing part thread socket for threaded pipe size transition |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
