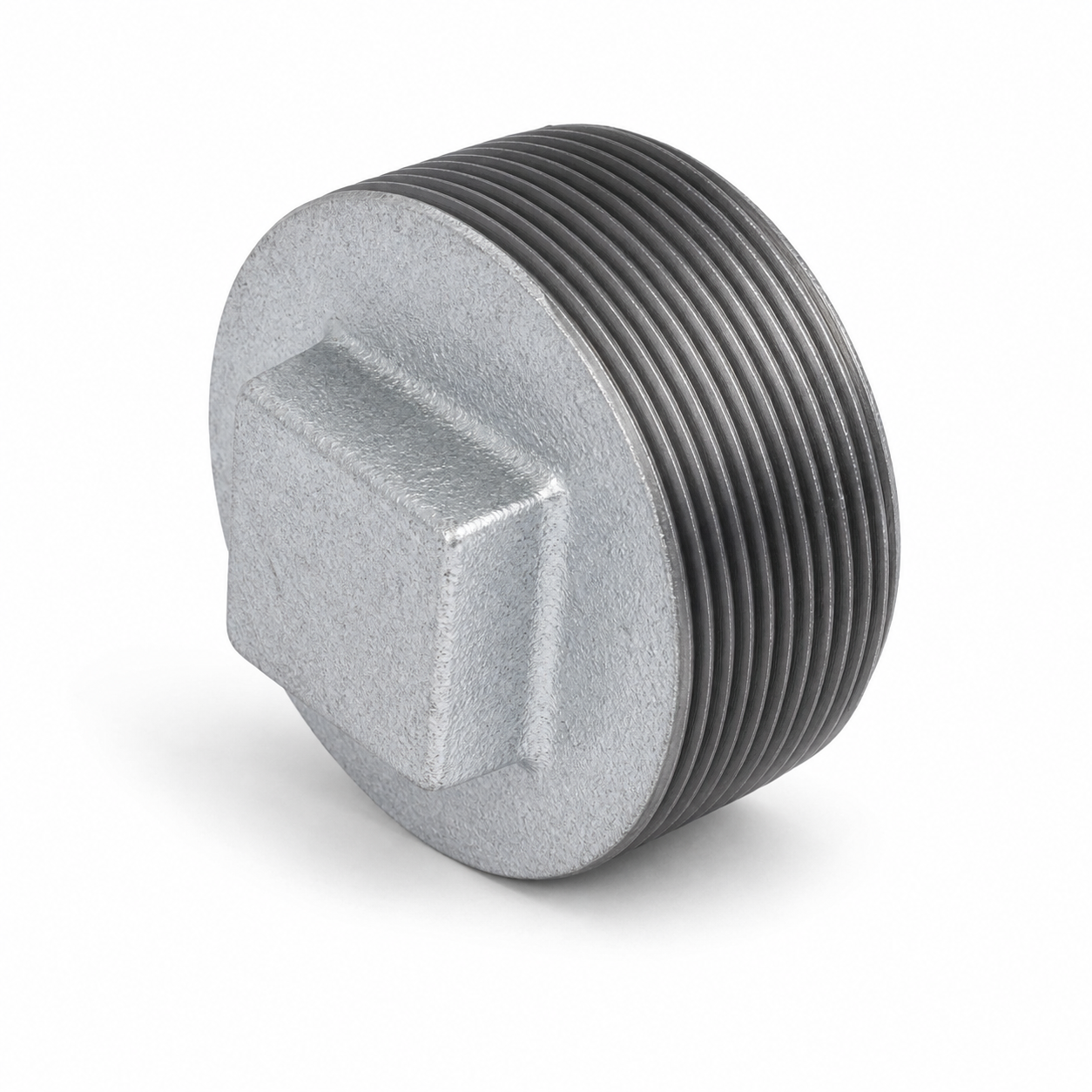

Malleable Iron Plain Plug Fig.291
Galvanized malleable iron plain square-head plug with external male thread for sealing threaded pipe openings.
Product Features
- Material: malleable iron
- Finish: black or galvanized
- Connection: male threaded plug
- Drive style: plain square head
- Catalog reference: Fig.291

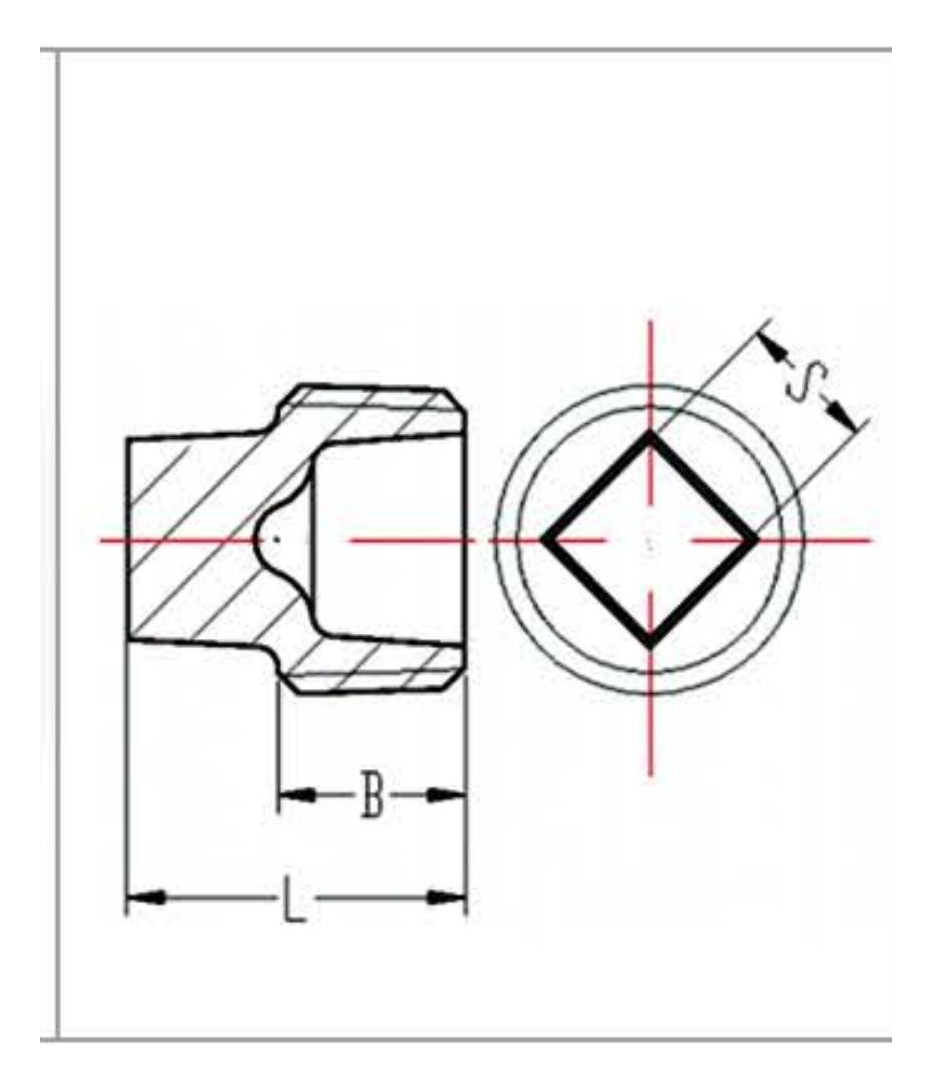

Dimensions and Packing
| Code | NPS | DN | L (mm) | B (mm) | S (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|---|---|
| JZGAL29101 | 1/4 in. | 8 | 15.5 | 10 | 6 | 8.82 | 9 | 2400 |
| JZGAL29102 | 3/8 in. | 10 | 17 | 10 | 7 | 15.68 | 16 | 2200 |
| JZGAL29103 | 1/2 in. | 15 | 22.5 | 13 | 10 | 24.5 | 25 | 1400 |
| JZGAL29104 | 3/4 in. | 20 | 24 | 14 | 12 | 36.26 | 37 | 800 |
| JZGAL29105 | 1 in. | 25 | 27 | 16.5 | 15 | 57.82 | 59 | 500 |
| JZGAL29106 | 1-1/4 in. | 32 | 30 | 20 | 18 | 103.88 | 106 | 300 |
| JZGAL29107 | 1-1/2 in. | 40 | 31 | 21 | 22 | 140.14 | 143 | 200 |
| JZGAL29108 | 2 in. | 50 | 36 | 25 | 26 | 230.3 | 235 | 120 |
| JZGAL29109 | 2-1/2 in. | 65 | 40.5 | 26.5 | 30 | 348.88 | 356 | 72 |
| JZGAL29110 | 3 in. | 80 | 45.5 | 29.5 | 34 | 512.54 | 523 | 64 |
| JZGAL29111 | 4 in. | 100 | 57 | 38 | 44 | 978.04 | 998 | 36 |
Product Details
| Product Type | Plain plug for closing threaded pipe openings |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, length, thread and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
